Industrial Prefab Steel Structure Warehouse Frame Construction Building

PRODUCT DESCRIPTION

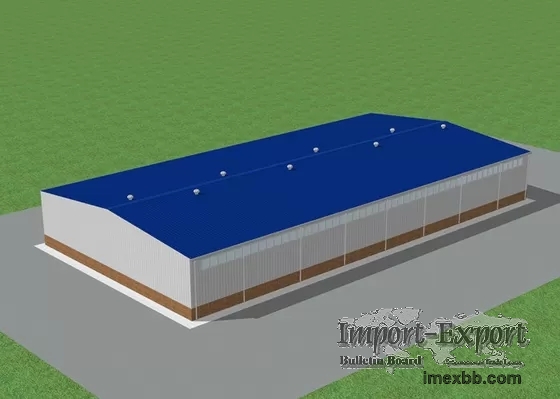

50m*25m Prefab Construction Steel Structure Warehouse Frame Building


About This Steel Structure Warehouse Building

Roof design



Double slope single ridge

The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage
system, which can cope with the rainy season

Roof method: 0.4MM color steel plate + 50mm glass wool + steel wire mesh

Classic Ventilator Advantages
1. No electricity, 24/7 operation, zero operating costs, saving resources.
2. High sensitivity, no noise, rainproof, sturdy and durable.
3. Parts can be replaced by customers, easy to install and easy to maintain.
4. The appearance is compact and elegant.



Wall design



Wall method: 0.4MM color steel plate + 50mm glass wool + steel wire mesh

4m*3.6m(2),sliding door with canopy, canopy above each door to play the role of
sunshade and rain shelter.

Fixed long window, 48m*1m(2), no lower window, in the case of ensuring ventilation
and lighting, the cost is saved.


The Details of This Steel Structure Warehouse




site condition


Project location wind load (m/s) function



Ethiopia



Warehouse

size


length (M) width (M) height (M)


50


25 6

crane request


crane tons (T) lifting height (M) crane quantity (set)


No


No No

wall request


brick wall height (M) insulation gutter


1.2m


No Yes

roof request


insulation skylight ventilation


Yes




No



Yes

door & window


the quantity and size of door (M) the size of lower window (M) the size of
upper window (M)


4m*3.6m(2)



No 48m*1m(2)

Industrial Prefab Steel Structure Warehouse Frame Construction Building 0


Advantages of steel construction

Prefab steel Structure workshop buildings are used for industrial production in
which all steel structures are painted and then delivered to the project site for
installation. And because the steel structure can be manufactured in the factory
and installed on-site, the construction time is significantly reduced. Due to the
steel it can dramatically reduce construction waste and is more environmentally
friendly. Therefore, it widely used in industrial buildings and civil buildings.





Our company

QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD

With many years of steel structure export experience and steel structure
construction experience, it can provide a series of services from design to
production to on-site installation to after-sales. Each steel component will be
numbered in detail at the time of delivery, and complete and detailed installation
instructions and construction process instructions will be provided. If the
customer needs, we can also send overseas construction teams or construction
workers to assist in the installation.



Industrial Prefab Steel Structure Warehouse Frame Construction Building 1Industrial
Prefab Steel Structure Warehouse Frame Construction Building 2


Possess the foreign contracted project management qualification certificate issued
by the Ministry of Commerce of China, CE certification [EN1090 certificate],
IS09001 certificate, etc.

Industrial Prefab Steel Structure Warehouse Frame Construction Building 3

PRODUCTION CAPACITY :



Our company:QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD

The company has:





2 composite board production lines



more than 1 million meters/year


5 color steel plate production lines



2 million meters/year


2 H-type steel CNC production lines



20000 tons/year


1 C-type steel production line



2500 tons/year


1 Z-steel production line



2,000 tons/year
