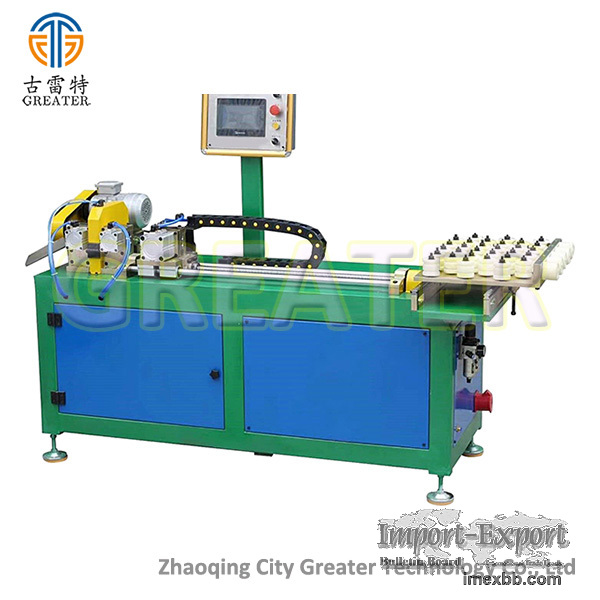

Industrial Heater auto coil tube straightening and cutting machine

Straighten the coil tube auto, and auto cut the tube according to the length need.
Machine suitable for coil copper tube, aluminum tube to straight and cut.

Application:

Copper coil tube straight and cut, such as copper water heater produciton.

Main Data:


1. Suitable OD of tube: Φ4-Φ19mm;

2. Wall-thickness: 0.2-2.0mm;

3. Feeding speed: 0-60mm/min;

4. Cutting method: rotary cutting;

5. Min length to cut: 25mm;

6. Power supply: 3phase 380V, 50HZ or according to order;

7. Air supply: 0.4-0.8Mpa clean compressed air;

Information need for order GT-ASCT19 auto coil tube straightening and cutting
machine:


Tube diameter to cut
Length to cut
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

Minimum Order: 1 sets
