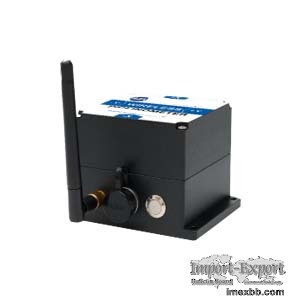

Industrial Grade Wireless Transmission Tilt Sensor

Introduction
ER-TS-52400 protocol is an ultra-low power, small size, and high performance
wireless tilt sensor for industrial applications where users have no power
supply or real-time dynamic measurement of object attitude angle. Based on the
Internet of things technology Bluetooth, Zigbee (optional) wireless
transmission technology, all internal circuits are optimized design, good long-
term stability and small zero drift, can automatically enter the low-power
sleep mode, so as to get rid of the dependence on the use of the environment;
Industrial equipment wireless transmission distance: Bluetooth<50 meters,
Zigbee<1600 meters.
Compact product structure, precision design, for temperature and linearity
compensation again, integrated with short circuit, instant high pressure,
polarity, surge and other comprehensive protection functions, simple and easy
to use, and wireless digital signal transmission mode eliminates the tedious
wiring brought by long cable transmission, noise interference; Industrial-grade
design has extremely high measurement accuracy and anti-interference ability,
wireless sensor nodes can form huge wireless networks, supporting thousands of
monitoring points for simultaneous inclination monitoring, supporting the
professional computer software, no need for field survey, real-time data
measurement and record the state of the measured object; Suitable for the
industrial site, old dilapidated houses, ancient buildings, civil engineering,
various tower tilt deformation remote real-time monitoring and analysis of the
needs of the safety monitoring system.

Product property
Biaxial monitoring (uniaxial optional)
Measurement Range: Double axis ±90°, single axis ±180° (360° optional)
Accuracy: 0.3°, resolution: 0.05°
Volume (94*74*64mm) (customizable)
Ultra-low power consumption
Built-in rechargeable lithium battery power supply
Wide temperature work:-40~+ 85℃
Protection level: IP67

Product application
Billboard monitoring
Bridge construction
PTZ levelling
Ship attitude measurement
High speed rail roadbed tunnel monitoring
Satellite solar antenna positioning
Medical equipment
Various engineering machinery angle control
