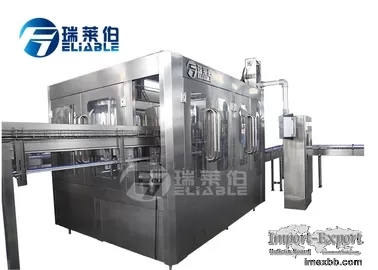

Industrial Fully Automatic Water Bottling Plant

Product Description


Stable Operation Industrial Fully Automatic Water Bottling Plant Suit For 1.5
Liters



Quick Detail:

Name: CGF 24-24-8 Water Filling Machine
Material: Food stage stainless steel
Control: PLC &Touch Screen Control
Capacity: 10000-12000BPH
Suitable Bottle: PET/Glass bottle
Bottle Volume: 0.3-2L
Dimension:By order
Function: Washing filling capping 3 in 1
Technology: Advanced
After-sales service provided:Engineers available to service machinery overseas


Industrial Fully Automatic Water Bottling Plant 0

Description:



1. This mineral water filling machine can do the bottles from size 300ml to
2000ml. And little spares are need when changing bottles. We suggest users to
take same specification bottles, especially the same bottle neck.



2. The advanced technology is used in the mineral water filling machine,
gravity fixed liquid surface filling is used ,the amount of liquid is
controlled accurately ,the filling is fast ,the amount of liquid is controlled
accurately ,the dropping and leakage id avoided.



3. Spring crampe is used in the washing process of this bottle water filling
machine, the empty bottle can turn over 180 degree along the conveying rail
,there are two times of internal and external washing ,the efficiency is high.



4. The magnetic torque is used for screwing capping in this water filling
machine, the power of screwing capping can be adjusted without steps and the
power also can be fixed ,and the cap will not be damaged and the sealing is
reliable.



5. The whole water filling machine is controlled by PLC, the liquid in the
storage tank can be controlled automatically .the filling and capping process
will be stopped when there is no bottle or the cap is no available or the
bottle is cramped wrongly.



6. This mineral water filling machine is used to produce polyester bottled
mineral water, purified water, alcoholic beverage machinery and other non-gas
beverage machinery.



7. The PET bottle water filling machine can finish all the process such as
press bottle, filling and sealing, it can reduce the materials and Outsiders
touch time, improve the sanitary conditions, production capacity and economic
efficiency.



Details:



Industrial Fully Automatic Water Bottling Plant 1



1)Rinser Station:

Ø All 304 stainless steel rinser heads, water spray style inject design, more
save water consumption & more clean

Ø 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash
during washing

Ø 304 stainless steel washing pumps





2)Filler Station:

Ø High precision filling nozzle, PLC variable signal control, ensure high
filling precision & filling smoothly & steadily,

Ø All 304 stainless steel contact parts & liquid tank, fine polish, easy to
clean

Ø No bottle no filling





3)Capper station:

Ø Place & capping system, electromagnetic capping heads, with burden discharge
function, make sure minimum bottle crash during capping

Ø All 304stainless steel construction



Ø No bottle no capping



Who will need our machines?



Those who want to set up beverage factory, such as drinking water, mineral
water,pure water,spring water and so on.
Those who want to purchase machines from reliable supplier and do business with
the third party.
Those who seek for high quality machines.


Specifications of mineral water filling machine



Model

CGF8-8-3

CGF12-12-6

CGF18-18-6

CGF24-24-8

CGF32-32- , 10

CGF40-40-10

CGF50-50-12

Wa , shing No.

8

12

18

24

, 32

40

50

Filling No.

8

12

18

24

, 32

40

50

Capping No.

3

6

6

8

10< , br>
10

12

Production capacity

(0.5L b/h)

2000

4000

7000-8000

10000-12000

12000- , 15000

15000-18000

20000-22000

Installed Capacity(KW)

3

3.5

4

4 , .8

7.6

8.3

9.6

Overall size(LXWXH)

2250*1800

*2400

2 , 450*1800

*2400

2650*1900

*240 , 0

2900*2100

*2400

4100*2400

*2400

4550*2650

*2400

5 , 450*3210

*2400





Competitive Advantage:



We have one year warranty for all our machines and engineers are overseas
available to install and adjust for you.
If our client has any question about the machine, we will provide our best
service to solve the problem.
We have our own factory, the quality of our machine is quite reliable and
controllable, thus, we can guarantee our good quality.
We have business relationship with many countries such as Europe, America,
UK,Africa, Middle East, Southeast Asia and so on, and we are proud of our
turnkey project.




Our Company



Zhangjiagang Reliable Machinery Co., Ltd is specialized in beverage production
and packing equipment.We are one of the companies engaged in manufacture liquid
filling and packing equipment in China.



Our products include: Liquid filling machines (water,fruit juice/milk,
carbonated drinks, oil, alcohol, plant protein drink, etc.), Barreled filling
line (3-6 gallon) Water treatment machines, Labeling & packing machines, semi-
automatic/full automatic bottle blowing machines, and injection molding
machines.





What service Reliable Machinery Co.,Ltd can offer you ?



OEM & ODM projects are both available
Your inquiry related to our product & price will be replied within 24hours
Your business relationship with us will be confidential to any third party.
Working time: 8:30am ~6:00pm, Monday to Friday (UTC+8).
Best after-sale service offered, please get back to us if you got any
questions.
Well-trained & experienced staff are to answer all your inquiries in English
and Chinese
