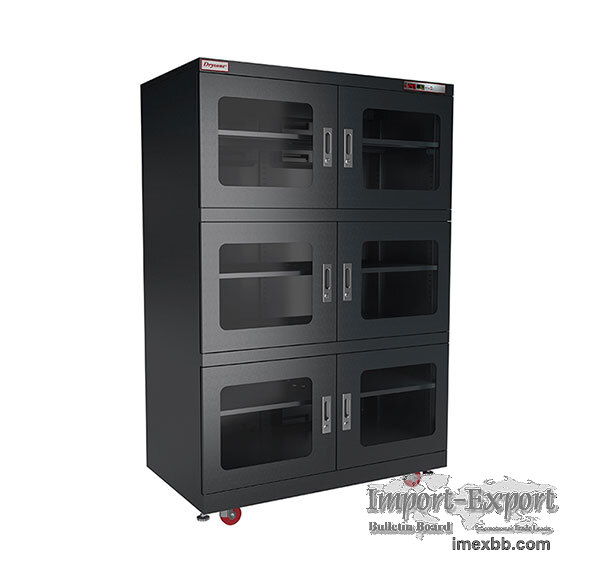

INDUSTRIAL DRYING CABINET

Dryzone Industrial Drying cabinet are designed for electronic gadgets and
valuable collections, PCB (printed circuit boards)/IC/BGA/MSD(moisture-
sensitive materials) 2, 2a, 3, 3a, 4, 4a different levels of components could
find the right dry cabinet in Dryzone and with the Auto baking dry cabinet, the
components floor life could be reset. With the patented dryer unit D10, the esd
dry cabinet could provide fast and efficient dehumidification ability, and the
lifetime of the dry cabinet could also last 10 years.
TYPES OF INDUSTRIAL DRYING CABINET
<1 Rh Ultra Low Dry Cabinet CF1 Series
<5% Rh Dry Cabinet C2E Series
1-50% Rh Dry Cabinet C1U/C1B Series
15-50% Rh Dry Cabinet C15U/C15B Series
<1 Rh Ultra Low Dry Cabinet CF1 Series
<1 Rh Ultra Low Dry Cabinet CF1 Series
CF1-1200-6<1% rh Ultra Low Dry Cabinet Cf1 Series

Humidity Range: <1%RH, Auto

Outside Dimension: W1200*D672*H1820MM

Internal Dimension:W1198*D644*H1618MM

Capacity: 1250L

Shelves: 5 shelves Power

ESD Paint

Voltage: 230V/110V

Consumption:135w/h(Ave);425w/h(Ma , x)

<5% Rh Dry Cabinet C2E Series

1-50% Rh Dry Cabinet C1U/C1B Series

15-50% Rh Dry Cabinet C15U/C15B Series
C15U-200 15-50%Rh Dry Cabinet C15U/C15B Series

Humidity Range:15~50%RH, adjustable

Outside Dimension:W600*D672*H632mm

Internal Dimension:W598*D642*H525mm

Capacity:202L

Shelves:1pcs

Normal Paint

Voltage: 230V/110V

Power ConsumptionAve. 5W/h; Max. 140W

WHAT IS THE DEHUMIDIFICATION THEORY OF DRYZONE DRY CABINET?
Dryzone dryer absorbs moisture in the dry cabinet box through the imported
material (molecular sieve) physically, after saturation, heating, through the
memory alloy opening and closing, the moisture is exhausted in the form of
water vapor. Thus repeatedly, until it reaches the IC program set the humidity
value on the LED.

WHY DRYZONE INDUSTRIAL DRYING CABINET?
Why Dryzone Industrial Drying Cabinet?
Display temperature & humidity values at the same time
Display Precision:±3%RH;±1℃

Built-in flash & buzzer alarm（option)

Why Dryzone Industrial Drying Cabinet?
Excellent Airtight Cabinet Body
Toughened safty glass window

Special design steel structure with excellent air tightness

Why Dryzone Industrial Drying Cabinet?
Excellent Dryer Unit
PPS material: Compare to ABS material cover which is easy to catch fire,PPS
material tolerance heat up to 230°C to avoid any deforming or melt down of the
dryer unit

Fire-resistance material certificate.

Regenerate dehumidifying material

Imported European molecular sieve which could recycle

used for years.

Modular design : easy maintenance and upgrade

Why Dryzone Industrial Drying Cabinet?
Flexiable Adjustable Shelves
The distance between shelves is adjustable and the shelves could be moved away
or add more shelves as you need.

FAQS ABOUT DRYZONE INDUSTRIAL DRYING CABINET
FAQs about Dryzone Industrial Drying Cabinet

What should be pay attention to when you first use a dry cabinet?

For the first time usage, plugit in and keep the cabinet empty at least for 24
hours before storing for any items.

What is the ambient environment does a dry cabinet require?
What is the install attention of a dry cabinet?
