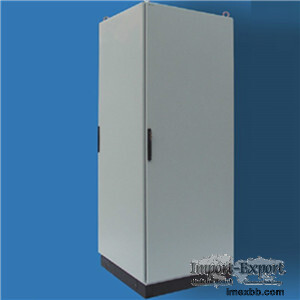

Industrial Control Cabinet

Industrial Control Cabinet industrial control panel enclosure industrial
electrical cabinet industrial control box

Product Description
Material of industrial control cabinet:
The material model of 16 folds, superior quality cooling plate, allumen plate

Characteristic:
Internal frame uses 16 folds vertical post which is completed one time
processing with superior cold strip rolling steel plate and shaped by the
combination of steel plugin and welding double-connected, the hoisting rings
overhead directly connect with steel plugin to make sure the hoisting strength
of the frame. The frame dynamic load-bearing is 1000kg. Each cover plates of
four sides can be disassembled for internal electrical equipment installation
and single cabinets connect convenience. Every 25mm has an installation hole
that meet the requirement of DIN on frame vertical post, which make
installation of the internal electrical component and fix of device become more
convenience. In order to extent the usable range of the industrial control
cabinet, the doors of different height (200-1000mm) of module partition inside
can be installed in the front of the cabinet. Direct-viewing operation panel,
modulization internal structure, maintenance convenient structure with
segmented type door, all of these make it become a classic switchboard system
control cabinet.Baseboard consist of removable cover plate to ensure the
cabling become more convenience and flexibility.Pedestal can select the
stationary type or assembly type.

Jiancheng-Industrial Electrical Cabinet Standard Configuration
Frame Top Cover Frontdoor Backplate Postnotum
Sideplate Two-rows side beam
1 set 1 piece 1 piece 1 piece 1 piece 1 piece 2 piece

Surface Treatment
Frame: RAL7035 flat posrnotum
Four sides covers: RAL7035 orange peel
Pedestal: RAL7035 flat.

Material:
Frame body: thickness 1.5mm, 16 bend
Front door: thickness 2.0mm, cold strip rolling steel plate
Back plate: thickness 1.5mm, cold strip rolling steel plate
Postnotum: thickness 3.0mm, hot galvanized plate
Side beam: thickness 1.5mm, cold strip rolling steel plate

The Charging Station/Pile for Vehicles
High quality derives from excenlent manufacturing capacity
As always we'll keep devoting ourselves to provding customers with whole set of
OEM/ODM solution;
Being one of the leading manufacturer in the sheet metal business, Jiancheng
work together with world-class enterprises in new energy industry, to develop
the recharging pile area;

Jiancheng is a data center manufacturer, which can customize the parameters and
models of idc micro module. We also provide OEM and ODM full set of outdoor
data cabinet solutions.
