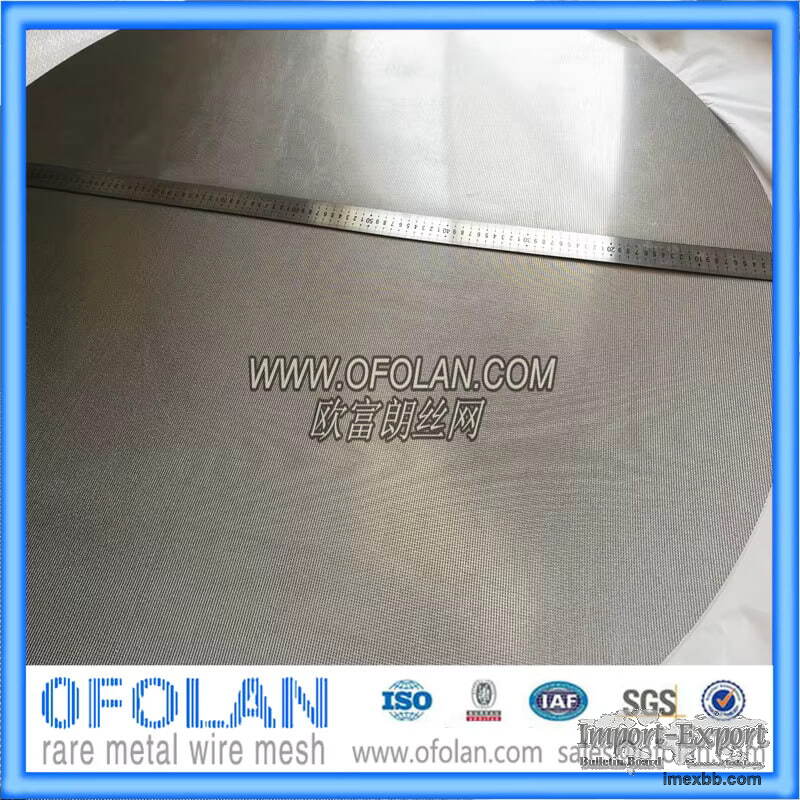

Inconel600 Wire Mesh(1000mm*16 meters x1 roll)

High temperature Inconel 600 nickel alloy wire mesh1000mm*16meters
.Details:Product name Inconel 600 nickel alloy Wire
Mesh/ClothGradeUNS N06600/W.Nr.2.4816Wire Di , ameter1.0mmAperture Size2.0 x 2.0
mmMesh from-Weaving PatternplainSize500mmX10 , 00mmDenstiy8.4g/cm3M. point1370-
1425°CIncone , l 600wire meshFeatures
High temperature alloy GH600Inconel 600 Characteristic as below:1.Good corrosion
resistance property for the reduction, oxidation, Nitric and other media. 2.Good
stress corrosion cracking resistance property in both room temperature and high
temperature.3.Good corrosion resistance of the dry chlorine and chlorine
hydride.4.Good mechanical property when below zero, room temperature and high
temperature.5.Good anti-creep rupture strength, with the recommendation of 700°C or
above working environment.
Inconel 600 Corrosion resistance600 have corrosion resistance to many kinds of
corrosive media. Chromium content made it with better corrosion resistance than
Nickel 99.2 (alloy200) and Nickel 99.2 ( alloy201,low carbon) in the oxidize
environment. Meantime, high Nickel content make this alloy with good corrosion
resistance in the reduction condition and alkaline solution, and also effective
avoid chlorine-iron stress corrosion cracking. 600 have good corrosion resistance in
the acid, acetic acid, formic acid, stearic acid and other organic acid, with medium
corrosion resistance in the inorganic acid. The alloy with excellent corrosion
resistance in the first and the second recycling use of the high purity water in the
nuclear reactor. Especially excellent corrosion resistance to dry chlorine and
chlorine hydride applied up to 650 °C. When nder the high temperature, annealing
and state solution alloy have good antioxidant off and high-intensity in the air,
600 can resist the ammonia, nitriding and carburizing atmosphere, but at the turn of
the changes in redox conditions, it will be corrosion by parts of oxidation media.(
such as green death liquid)Inconel 600 wire meshApplications1. Erosion
thermocouple sheath of the atmosphere
2.Vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen
chloride, oxidation and carbonation.3. Oxide shaft chloride converted to six
fluoride: hydrogen fluoride anti-corrosion.4. Corrosive alkali metal produce and
usage filed, especially the sulfide use environment.5. Use Chlorine produce titanium
dioxide6.Organic or inorganic chlorine produce: corrosion resistance to chlorine and
fluoride.7. Nuclear reactor8.Heat treatment furnace flask and components, especially
in the carbonization and nitride atmosphere.9. Petrochemical works production of
catalytic regeneration in the application of more than 700°C recommended the use of
600, in order to obtain a longer service life
​
​
​
​

Minimum Order: 1 pieces
