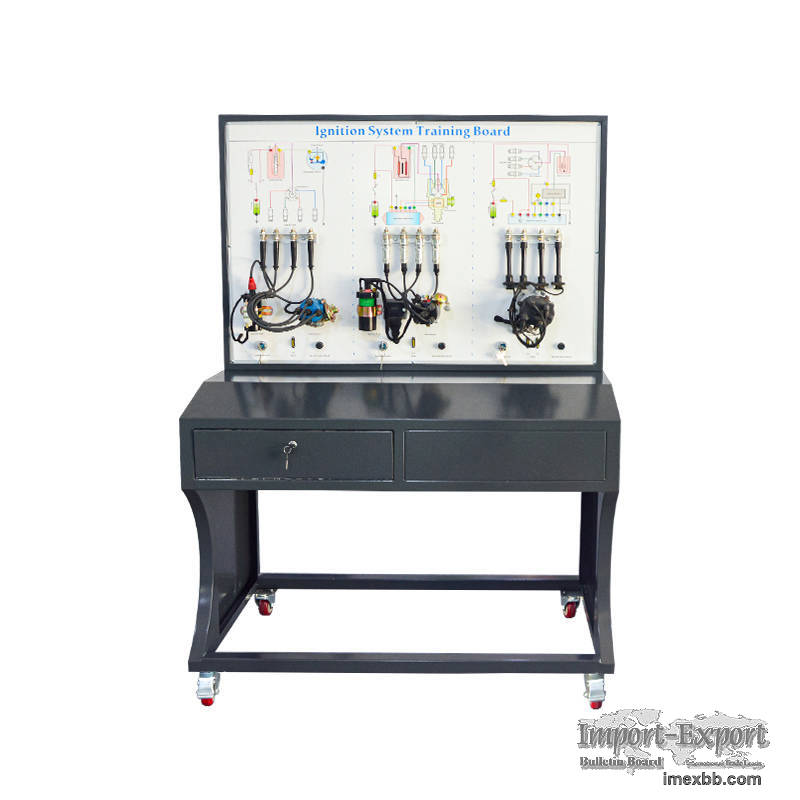

Ignition System Demonstration Board

Product requirements
The equipment uses three typical (i.e.: contact ignition system, Hall-type
electronic ignition system, magnetic induction ignition system) of the real
parts of the engine ignition system to fully demonstrate the composition of the
engine ignition system structure and working process.

The functional requirements
1. The real can run three typical engine ignition system, can fully demonstrate
the contact ignition system, Hall-type electronic ignition system, magnetic
induction ignition system composition structure and working process.
2. Training table measurement panel painted with colorful spray-painted circuit
diagrams, using 4mm thickness of high-strength aluminum spray-painted from the
board, with a large temperature difference, wear-resistant, moisture-proof,
anti-corrosion, not easy to deformation, long service life, bright colors, not
easy to fade and other characteristics; students can intuitively control the
circuit diagram and the real thing, recognize and analyze the working principle
of various ignition systems.
3. The panel of the teaching board is installed with detection terminals, which
can directly detect the electrical signals of the circuit components of the
ignition system on the panel, such as resistance, voltage, current, frequency
signals, etc.
4. The training table is made of high-quality steel welding, with high
strength, corrosion resistance, long life, etc., without the need to go through
the spraying process, more environmentally friendly, more beautiful and high-
grade appearance, the table frame with self-locking casters device, mobile and
flexible, safe, reliable, durable.
5. The teaching board works with ordinary 220V AC power supply, which is
transformed into 12V DC power supply by internal circuit, without battery,
reducing the trouble of charging.

Specifications
Size: 1200 * 800 * 1800mm (L * W * H)
Power supply: AC220V

Minimum Order: 1 sets
