IEC62262 IK07 IK10 Mechanical Vertical Impact Test Apparatus

IEC62262 IK07-IK10 Mechanical Vertical Impact Test Apparatus





Product Introduction:

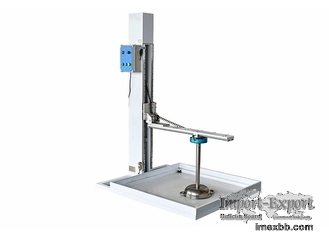

The IK07-IK10 Mechanical Vertical Impact Test Apparatus is designed and
manufactured according to the standard requirements of IEC60068-2-75,
IEC60598-1, IEC62262 and etc.

It is used for the impact resistance test of the enclosures of household and
similar electronic and electrical products and their accessories,
luminaires, etc., to assess the safety performance and strength level of the
products.
The principle is that the striking element is free released at a certain
height through a 1 m pendulum tube, impact the specimen at the lowest point
in the vertical direction, after the conversion of gravitational potential
energy to kinetic energy, to achieve the purpose of impact test on the
sample.



Technical Parameters:

Standard IEC62262
Energy / J 2, 5, 10, 20 and 50J are optional
Striking Elements

(Equivalent Mass)

500g,1.7kg,5 kg,5 kg,10 kg, please refer to the following table 1
Conduit Each striking element is equipped with a dedicated conduit
Impact Point The device has X and Y axis guides to move the release
device over the entire bottom area
Height of Impact Point 0-1000mm, electric adjustable
Height of Fall Please refer to table 2, fixed by the conduit
Release Method Electromagnet release
Bottom Plate Nylon base plate thickness 8mm, hardness HRR85-
100,1000m×1000m


Relationship of IK code and corresponding energy :



IK Code

IK07 IK08 IK09 IK10
Energy / J 2 5 10 20
Note 1. If higher impact energy is required, the recommended value is 50J.

Note 2: Some other standards use a single digit to indicate the specified
impact energy. To avoid mixing with it, the feature number is represented by
two digits.

an unprotected according to this standard





IEC62262 IK07 IK10 Mechanical Vertical Impact Test Apparatus 0
