ID Reflector

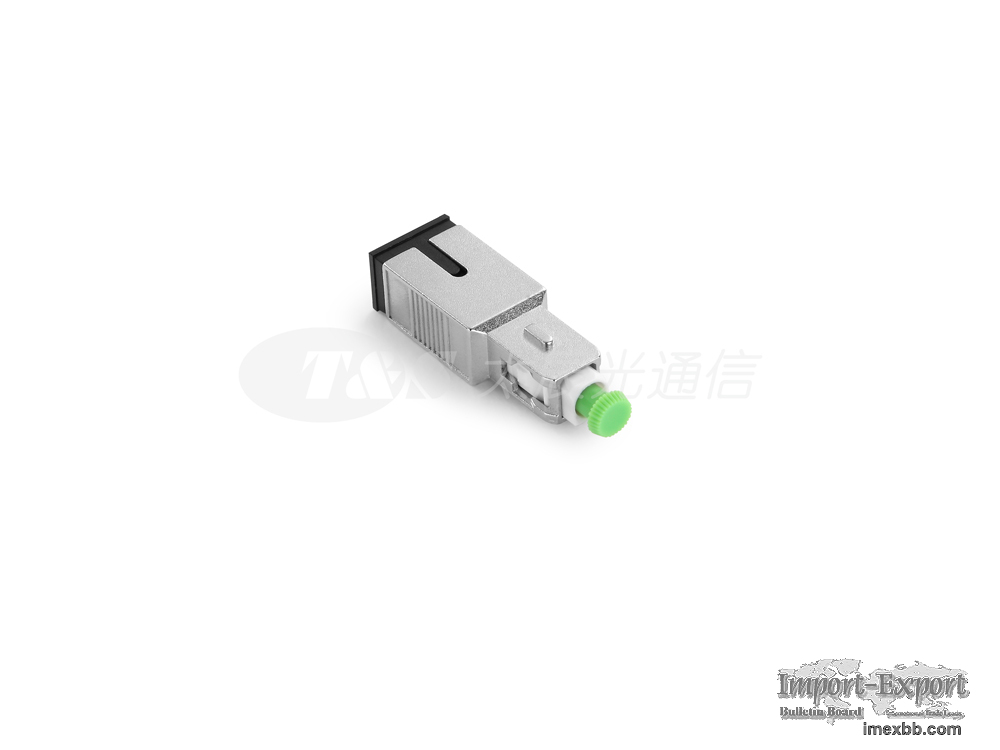

FBG ID Reflector can be used in FTTX fiber trouble-shooting monitoring. The
combination of the OTDR and FBG Reflector can detect and locate fiber faults
in minutes, protect the investment of unused fibers, and reduce the cost of
maintenance.

FBG ID Reflector is one of the two solutions under U-band Reflector (The
other is Thin Film based TFR, and both the two are available at T&S.). FBG
Reflector has been granted China patent and US patent. According to the
standard ITU-T G.982, the reflectance of any optical component between ONU
and OLT should be better than -35dB, which makes FBG Fiber Reflector a
perfect solution.

T&S FBG Fiber reflectors are designed in different encapsulation forms to
fit different applications. Customized encapsulations are also available.

Features of FBG ID Fiber Reflector

A Chirped FBG Embedded

IL<1db and="" rl="">35dB at Pass Band

Comply with ITU-T G.982

Stable and Reliable

Specifications of FBG ID Fiber Reflector
Parameters P/S Min Typical Max
Pass Band (nm) - - 1260 - 1625 -
Reflect Band (nm) - - 1645 - 1655 -
IL (1260nm – 1360nm) (dB) P/S - - 1.0/1.5
IL (1460nm – 1600nm) (dB) P/S - - 1.0/1.5
IL (1600nm – 1625nm) (dB) P/S - - 3.0/3.4
IL @ Reflect Band - 21 - -
RL (1260nm – 1360nm) (dB) P/S 35/30 - -
RL (1460nm – 1580nm) (dB) P/S 33/28 - -
RL (1580nm – 1620nm) (dB) P/S 25/25 - -
RL (1620nm – 1625nm) (dB) P/S 20/20 - -
RL @ Reflect Band (dB) - - - 1.0
Max Optical Power (dBm) 27 - -
Plug Times - 500 - -
Operation Temperature (℃) - -25 - 70
Operation Humidity (RH) - 5 - 95
Storage Temperature (℃) - -40 - 85
Connector SC, LC


T&S Communications is a professional fiber optic products supplier. We
provide WDMs, Fiber Optic Component and so on. Want to know about ts
communication? Please contact us.
