Technical Specifications

Using palladium and platinum bimetallic deoxidization catalyst, the deoxidization
effect can reach the oxygen content ≤1ppm, and the atmospheric pressure
deoxidization effect can also reach the oxygen content ≤5ppm.
Adopting high quality molecular sieve with large loading coefficient and high
adsorption capacity rate,
hydrogen moisture content of the product can be ≤-75℃ dew point.
Adopting high efficiency sintered nickel tube filter, filtration efficiency can
reach 99.9999%. After dust removal, the molecular particle size is ≤0.3μm.
The purification working pressure can be adjusted from 0.8MPa to 3.2MPa, and the
maximum processing capacity can exceed the design value by 15%.
The amount of regenerated gas is 5%-10% of the processing capacity, and the power
consumption is zero. If the raw gas regeneration or the three-tower process is
adopted, the hydrogen loss is zero.
Fully equipped, the device has compact structure and is easy to maintain. PLC+
touch screen (or industrial computer) -- automatic operation.


Product Characteristic

Hydrogen production of water electrolysis is a technology that decomposes water to
produce hydrogen and oxygen under the action of direct current. It follows
Faraday's Electrolysis law. Under the action of direct current, water decomposes
into one part of hydrogen and one half of oxygen

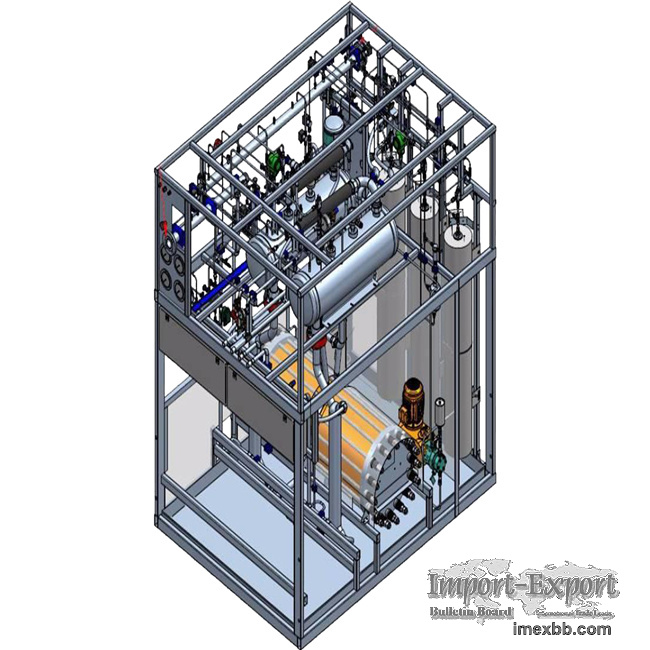

The water electrolysis hydrogen production equipment developed according to this
technology mainly includes:
Electrolyzer - hydrogen and oxygen generator
Accessory equipment frame - gas liquid treatment system

Company Profile

The ZXDH series hydrogen generator produced by Zhongxinda has a capacity from 2 to
250m3/h, and uses a new programmable logic controller (PLC) to achieve control.
Provide users with an efficient, reliable and safe hydrogen production system. The
hydrogen generator launched by the company also has a variety of control methods
and auxiliary equipment options.
It is available for users to configure according to the best working conditions.
