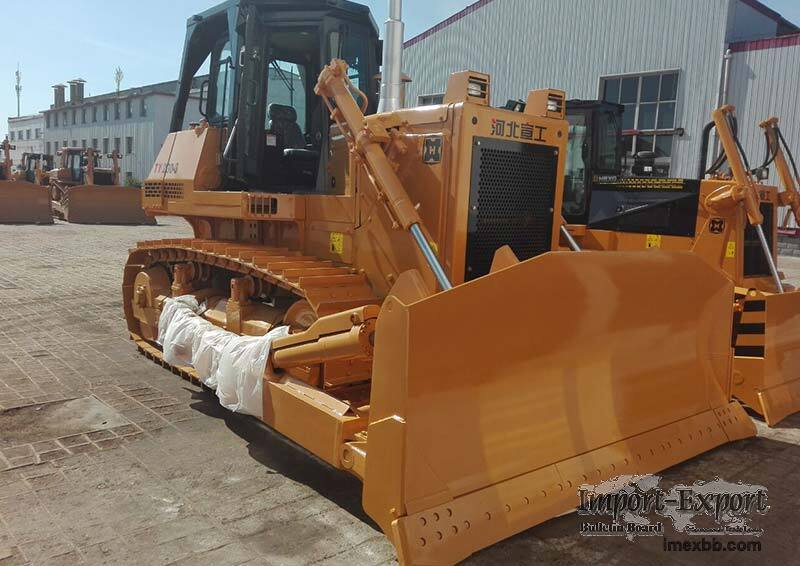

Hydraulically Driven Bulldozer Equipped With Cummins Engine

TY230-3 bulldozer is semi-rigid suspended, total hydraulic controlled and
hydrnamic driving bulldozer, equipped with new model Cummins engine, three-
element torque converter, single lever operation planetary gear transmission.
Integrality injection molding plastics instrument panel, fully sealed shock
absorption hexahedron cabin, the comfortabol system designed according to human
and machine engineering; Undercarriage system with split-type fightening spring
case structure makes the assembly and maintenance easy and convenient. The
whole machine is with the advantage of powerful, high efficiency, excellent
performance, and economical efficiency etc. Optianal equipments include U-
blade, angle blade handling blade, single and three shanks ripper, ROPS,
centralization lubrication, and track aytomatically tightening system. It is
the best choice for desert, oil fields, mines, electricity and sanitation
construction projects.Bulldozer Equipped With Cummins Engine
Hydraulically Driven Bulldozer Performance Parameters
Engine Cummins NT855-C280S10
Flywheel output 185KW/230HP
Operating weight 24840kg
Ground pressure 76Kpa
Track gauge 2000mm
Gradient 30°/25°
Min. ground clearance 405mm
Dozing capacity 7.8 m³
Blade width 3666mm
Max. Digging depth 540mm
Overall dimensions 5733×3666×3380mm
