HYDRAULIC FILTER ELEMENT

The hydraulic filter element can be used for filtering hydraulic oil, water
glycol, diesel oil, processing fluid, lubricating oil, coolant, gasoline,
process fluid, turbine and compressor lubricating oil, synthetic lubricating
oil, and more chemicals. And oil and more chemicals.

Hydraulic Filter Element Types
Hydraulic systems rely on hydraulic filter elements to ensure the cleanliness
of the hydraulic fluid, which is vital for the optimal performance and
longevity of the system. There are various types of hydraulic filter element
sizes available provided by our hydraulic filter element manufacturers. These
filter elements are engineered to effectively remove contaminants like
particles, water, and varnish from the hydraulic fluid, maintaining the desired
cleanliness level. They are available in different media types, including
cellulose, synthetic, and wire mesh, to suit specific application requirements.
Similarly, these hydraulic oil filter elements are known for their high dirt-
holding capacity, efficiency, and long service life. Also, these hydraulic
filter elements are constructed with advanced filtration media and technology
to efficiently remove particles, water, and other contaminants from hydraulic
fluids.

Hydraulic Filter Element Features
The hydraulic oil filter element is divided into a high-pressure section,
medium-pressure section, oil return section, and oil absorption section.

divided into high, middle, and low precision grades. 2-5um is high precision,
10-15um is medium precision, and 15-25um is low precision.

In order to compress the overall dimensions of the finished filter element and
increase the filtering area, the filter layer is generally folded into a
corrugated shape, and the pleating height of the hydraulic filter element is
generally below 20mm.

Generally, the pressure difference of hydraulic filter elements is 0.35-0.4MPa,
but some high pressure hydraulic filter elements are required to bear high-
pressure differences, and the maximum requirement is 32MPa, even 42MPa, which
is equivalent to the system pressure.

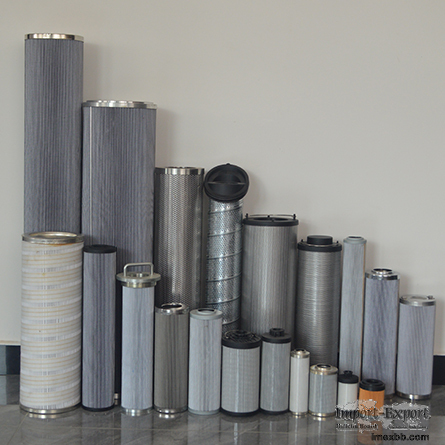

Hydraulic filter element group diagram

Diagram of hydraulic filter element group (9 sheets)

the highest temperature, some requirements of 135℃.

Hydraulic Filter Element FAQs

What is hydraulic filter element?
The hydraulic filter element is used in the hydraulic system to filter out the
particles and rubber impurities in the system and ensure the cleanliness of the
hydraulic system.

Hydraulic Filter Element Benefits
High pressure hydraulic filter elements remove contaminants from the fluid,
ensuring clean and reliable operation. This leads to improved system
performance, reduced downtime, and enhanced productivity. Secondly, by removing
contaminants, filter elements prevent damage to sensitive hydraulic components,
such as pumps, valves, and cylinders. This extends their lifespan and reduces
the frequency of repairs or replacements. Thirdly, clean hydraulic fluid
reduces friction, heat, and wear within the system, improving energy efficiency
and overall performance. This translates to reduced energy consumption and
lower operating costs. Then, filter elements prevent contaminants from
circulating within the hydraulic system, ensuring the integrity of the fluid
and preventing damage to critical components. Fianlly, hydraulic filter
elements help meet industry standards and regulations, ensuring compliance with
quality and safety requirements. By removing contaminants, filter elements help
maintain the quality and longevity of the hydraulic fluid, reducing the need
for frequent fluid changes and disposal.

Hydraulic Filter Element Application
High Pressure Applications: Compare with coalescer element, hydraulic systems
can operate under high pressure conditions, such as heavy machinery and
industrial equipment, require filter elements capable of withstanding high
pressure differentials. These filter elements are designed with robust
materials and reinforced structures to ensure durability and reliable
filtration performance in high-pressure environments.

Medium Pressure Applications: Many hydraulic systems, including mobile
machinery, agricultural equipment, and automotive applications, operate at
medium pressure levels. Filter elements used in these systems strike a balance
between durability and filtration efficiency, effectively removing contaminants
to maintain system integrity and performance.

Low Pressure Applications: In certain hydraulic systems with lower pressure
requirements, such as hydraulic power units, lubrication systems, and smaller
equipment, filter elements are designed to offer efficient filtration without
the need for heavy-duty construction. These filter elements provide reliable
contamination control in low-pressure hydraulic systems.

As a hydraulic filter element supplier, we can offer sorts of replacement
hydraulic filter elements for sale, and the hydraulic filter element price is
reasonable, anything you need, please contact us.

If you are looking for a reliable filter cartridge factory, please contact us,
and we will be your best partner.

Minimum Order: 1 pieces
