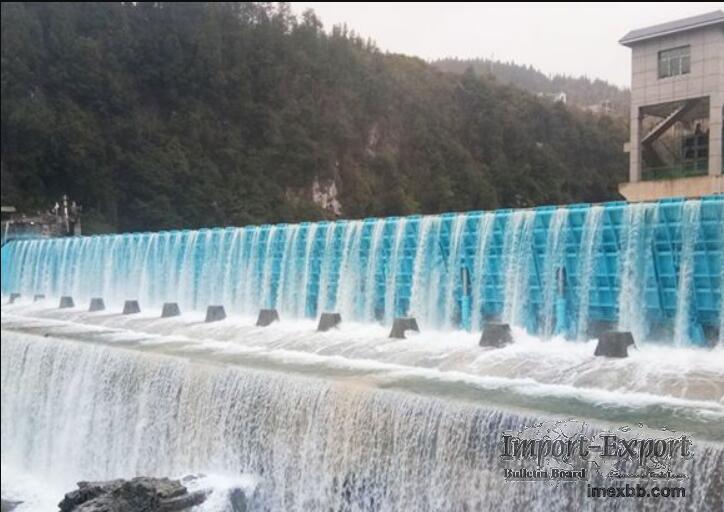

Hydraulic Elevator Dam

Hydraulic elevator dam, researched and developed by BIC, is an innovative
achievement in water conservancy science and technology. It is the optimized
combination of hydraulic "three-hinge-point luffing mechanism principe" and
traditional sluice.
Hydraulic cylinders support at the back of the panel to lift up the gate for
blocking water or to drop down the gate in the case of flood discharging. It
is applicable to various hydrological and geological conditions; it is
widely used in river landscape, storage of irrigation water, expension of
reservoir capacity and other water conservancy hydropower, water ecological
civilization and urbanization construction projects. This technology has
obtained series of patents issued by State Intellectual Property Office of
P.R.C and has been listed in 2014 Catalogue of Key Promotion and Guiding for
Advanced Water Conservancy Practical Technologies.
Product Specifications
Gate material: RCC/Steel/Stainless steel
Gate type: Arc type/ plate type/shaped type(customized)
Gate height (H): 0.5m-6.0m
Width of single span:The standard width can be 6m, 7m or 8m; it also can be
made to order.
Hoisting structures: Plunger type cylinder/double-acting cylinder multi-
stage cylinder.
Control system: Manual control cabinet, PLC control cabinet, computer local
cabinet, computer remote control.
Synchronous dam elevating and lowering, automatic alarm function and dam
lowering in case of exceeding water level. Design superiority.
