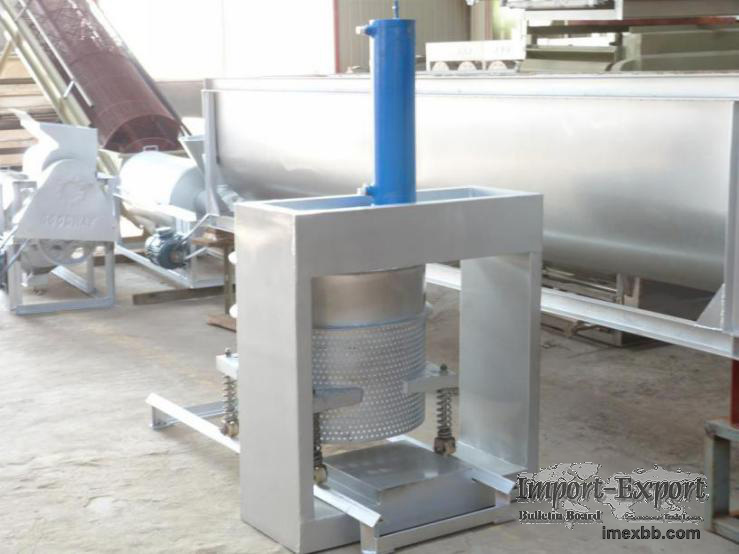

Hydraulic Dewatering Press

Hydraulic Dewatering Press

sava processing machine
Features of Hydraulic Dewatering Press
Processing Capacity: 100-500kgs/hour
Application Scope: Cassava slurry dewatering
Product Introduction: Hydraulic dewatering press, hydraulic press, cassava
dewatering machine for cassava flour and Garri processing

Load the bags directly on to a hydraulic press. Under control of the hydraulic
station and electric cabinet to lift and press the jack handle up and down
until it becomes hard to move. Repeat the process several times each day until
no more water comes out of the bag to produce a firm wet cake.

1. Vertical structure, cover a small area.
2. Open type press box design, convenient operation, around the box lined with
corrosion resistant plastic or stainless steel orifice plate, pressure plate
lining stainless steel, stainless steel tank and stainless steel tray installed
on the bottom of the box.
3. Equipped with super trip protection, ensure user safety.
4. Press adopts hydraulic drive, automatic pressure maintaining, high
efficiency.
5. All steel structure frame, high intensity, long service life.
Product Principle of Hydraulic Dewatering Press
By using the principle of hydraulic and self-weight, no filter chamber cavity
will directly press and squeeze the water under putting the material into the
filter bag to further reduce the moisture content.
Technical Parameters of Hydraulic Dewatering Press(single cylinder)

Model no. GD-SHP-400
Machine material Stainless steel
Capacity 200-300kg/hour
Press frame volume 400L
Voltage 380V &50/60Hz 3Phase
Power 1.5KW
Cylinder pressure 20MPa/50t
Weight 500KG
Interior casing dimension(L×W×H) 1000×400×1200mm
Overall dimension(L×W×H) 1250×700×1250mm
Model no. GD-DHP-600
Machine material Stainless steel
Capacity 300-400kg/hour
Press frame volume 600L
Voltage 380V &50/60Hz 3Phase
Power 1.5KW
Cylinder pressure 20MPa/50t
Weight 800KG
Interior casing dimension(L×W×H) 1200×600×800mm
Overall dimension(L×W×H) 1360×1600×1500mm

Technical Parameters of Hydraulic Dewatering Press(double cylinder)

Nanyang Goodway Machinery & Equipment Co., Ltd. is a leading manufacturer and
supplier of Cassava & Potato Processing Machineries, we provide potato starch
machine, potato powder making machine, casdewatering press for sale and etc.
Want to know more? Please contact us.

Minimum Order: 1 sets
