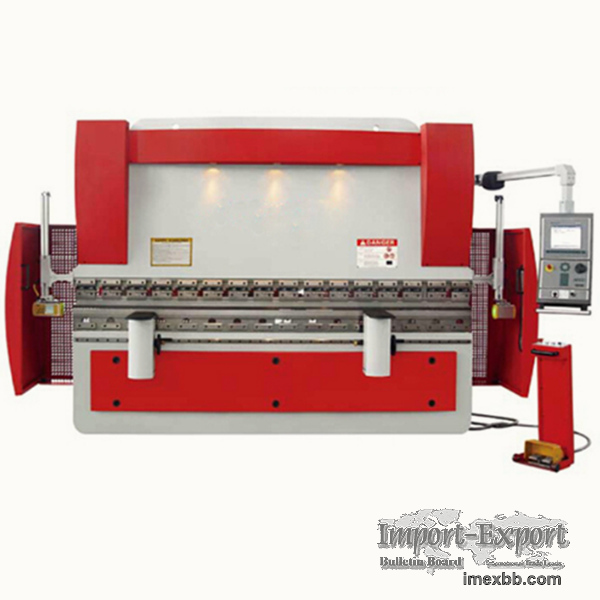

Hydraulic CNC Press Brake WE67K-100/3200 DA66T

Hydraulic CNC Press Brake WE67K-100/3200 DA66T

Machine introduction:
WE67K-100/3200 DA66T Servo Motor hydraulic press brake machine for sale
WE67K series CNC servo drive electrical-hydraulic press brake is the most
advanced press brake now, the machine has lots of advantages for the normal
type. First of all, WE67K series press brake with much higher working speed,
more efficient to use, and can help operator make more product, secondly, WE67K
series press brake will save power, because with servo drive motor, the bending
machine can save about 30%-70% power, it means our customer will save lots of
cost. Thirdly, the WE67K series press brake will with less noise, PLSON WE67K
series CNC press brake will make your workshop very quietly and comfortable for
all workers.
Main Features:
Totally European design, streamlined looking
Taking off inner-stress of welded parts by tempering, good stability
Remove rust with sand-blast and coated with anti-rust paint
Once clamping can finish all working surfaces which will guarantee dimension
precision and position precision.
The design of the machine frame is a critical part of any machine with relation
to its ability to produce accurate parts for a long period of time.
Frames, assembly surfaces and connection holes are machined after the welding
process, up to 60' in a single pass.
Main Configuration of cnc hydraulic press brake bending machine.
No. Name Producer
1 CNC System DELEM, DA-66T
2 Valve block for pressure BOSCH/HOERBIGER
3 Valve block for synchronization BOSCH, GERMANY
4 Main sealers in cylinder NOK or SKF
5 Gear Pump BOSCH
6 Linear Scale HEIDENHAIN
7 Servo Motor YASKAWA, JAPAN

Safety Equipment:
EN 12622:2009 +A1:2013 / EN ISO 12100:2010 /EN 60204-1:2006+A1:2009
1. Front finger Protection(Safety light curtain)
2. South Korea Kacon Foot Switch(Level 4 of safetv)
3. Back metal safe fence with CE standards
4. Safety relay with Monitor the pedal switch and safety protection

Inspection Criterion:
Inspection criterion: According to China standard criterion GB-T14349-93
《Precession of hydraulic press brake》and JB2257.1《Technology requirements of
hydraulic press brake》.

Delem CNC Control system:
1. The compact Delem CNC system is a complete CNC solution for conventional as
well as synchronised press brakes.
2. The panel based control, capable of controlling up to 4 axes, can be
integrated in cabinets as well as in an optional pendulant arm housing.
3. Equipped with the Delem user-friendly user interface, the DA-52s provides
all main press brake functionality.
4. The unique 'hotkey' navigation gives direct access to the programs in memory
and enables quick and easy programming of a product. All common bend parameters
are located on one page. For advanced parameters an additional page can be
selected.
5. Angle programming of the Y-axis, crowning function and pressure control are
standard on board.
6. USB interfacing enables the use of memory sticks as a fast product and tool
backup medium.
