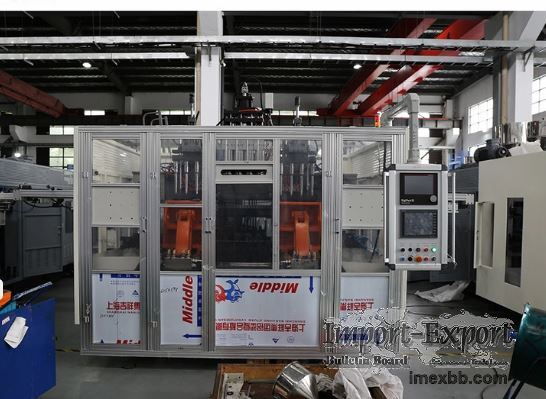

Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic

This is our best series machine. This is hydraulic servo system. The clamping
unit is elbow style and the clamping force is more uniform. It is high speed
and energy-saving. This machine is suitable for stacking product, jerry can,
etc. It can be also equipped with several die-heads and then to make the small
product.

Technical Parameters
MODEL
Units
HSII-12L

Remarks: The main parts of this machine are designed and manufactured by
ourself.We do the independent R&D and inspection.If you have other special
requirements,we can provide customized services for you.
Max. Product volume
L
12

Output of HDPE
kg/h
180

Clamping force
kn
158

Screw diametre
mm
110

Screw heating power
kw
21

Blow pressure
mpa
0.6

Size of machine
m
4.9x3.1x3.2

Click to Enlarge
