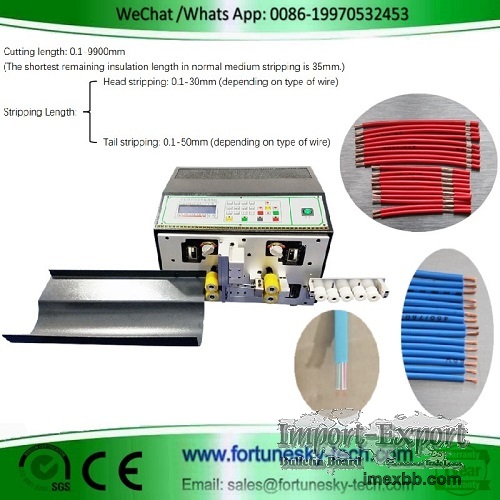

HWN-220 Fully automatic wire cutting stripping machine

This most advanced electronic product has more compact structure design,
more wires can be processed, and higher precision. All debugging actions are
completed in the LCD panel. The model of wire cutter and stripping machine
efficiency is more than 30% faster than the traditional model. According to
the requirements, the cutting speed can be adjusted (0-9 level) to complete
the three sectors stripping requirements.
Model No. HWN-220 HWN-220+T
Dimension 450x450x360mm 450x720x360mm
Net. Weight 40KG 60KG
Cutting Length 0.1-9900mm (The shortest remaining insulation length in
normal medium stripping is 35mm.)
Stripping Length Front stripping: 0.1-30mm (depending on type of
wire)
Rear stripping: 0.1-50mm (depending on type of wire)
Twisting Length Front stripping: 0.1-30mm (depending on type of
wire)
Rear stripping: 0.1-50mm (depending on type of wire)
Wire Diameter AWG16-AWG32
Cutting Error 0.2mm+Lx0.2%
Voltage AC 110V-220V (50/60Hz)
Power Machine stop working:20W, max is 220W.

Minimum Order: 1 pieces

HWN-220 Fully automatic wire cutting stripping machine
