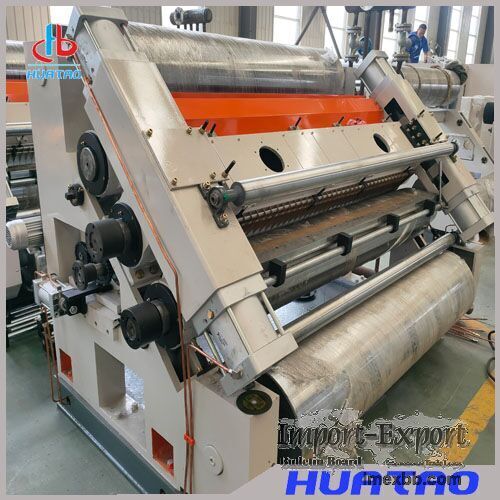

Huatao Single Facer

Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email: maple@huataogroup.com maple(at)huataogroup.com
Tel: 0086 133 8311 0583
WhatsApp: 0086 133 8311 0583

Product Description
Cassette type single facer provides convenient maintenance and provides quick
flute change. The corrugating rolls changing can be accomplished within 10
minutes utilizing a motorized cassette trolley, by which cassette is delivered
into the machine and fixed on the base of the machine.
Features
1. Maximum mechanical speed is 250m/min.
2. The diameter of the corrugating rollers is 380 mm. The diameter of the
pressure roller is 520 mm. The diameter of the surfaces of glue roller is 302
mm, The diameter of the doctor roller is 170mm.
3. The machine adopts positive pressure air cushion paper guide, with high
utilization of heat energy, and good quality of corrugated shaping.
4. Corrugated roller adopts positive pressure cassette type. It’s under the
pressure roller, so as to lower the center of gravity of the machine. It’s
smooth when under high-speed operation, and reduces vibration, so it’s more
stable and smooth during operation. Corrugated roller exchange is saver and
faster.
5. Corrugated roller, pressure roller and glue roller adopts individual driving
reduction box, to isolate vibration. The oil immersion lubrication and high
precision gear driving ensure stable and reliable during operation.
6. Corrugated roller sets get in and out hydraulic automatically, so as to
exchange different flutes rapidly.
7. Individual glue section could move out from the main machine, and it’s easy
to clean and maintain. An electric glue partition device is provided to give
convenient and rapid paper width adjustment.
8. The glue roller has low speed auto-rotate function, so as to avoid the glue
dry on the glue roller.
9. A frequency conversion motor is used to supply power, realizing stepless
speed adjustment and reliable and synchronous interlock with the following
devices. The frequency converter used is an international famous brand product
with stable and reliable performance and low failure rate.
10. All bearings of the upper and lower corrugated rollers, and pressure roller
adopt high temperature grease, so as to guarantee long life and smooth running
of the rollers.
11. The opening and closing of corrugated rollers, pressure rollers, glue
rollers, and the locking of corrugated roller set are all hydraulic controlled.
12. There is a face paper pre-heating roller and core paper pre-heating roller
in this machine. The pre-heating cylinder could rotate automatically and it is
equipped with a manual braking device. There is a conditioning steam injector
for core paper installed in the machine.
13. This machine is PLC controlled, and displayed by big color touch-screen.
Machine status is displayed by animated image, to achieve strong failure
diagnosis ability and operation guiding.
14. The gap adjustment between corrugated roller and pressure roller are
hydraulic controlled, and the gap adjustment between corrugated roller and glue
roller are electric controlled.
15. The machine is equipped with an automatic plc glue adjustment system.

Technical Parameter
Paper Width(mm) External Dimensions  (L×W×H)(mm) Weight(T) Total
Power of Motor (kW)
1400 5300x3100x2600 12 59.2
1600 5500x3100x2600 14 59.2
1800 5700x3100x2600 16 59.2
2000 5900x3100x2600 18 71.2
2200 6100x3100x2600 20 71.2
2300 6300x3100x2600 21 71.2
2500 6500x3100x2600 23 81.2

Minimum Order: 1 sets
