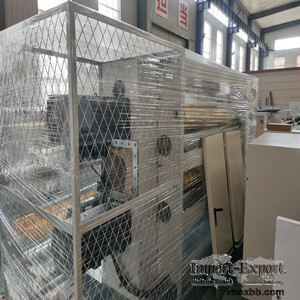

HuATAO NC Cut Off Machine

Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email: maple@huataogroup.com maple(at)huataogroup.com
Tel: 0086 133 8311 0583
WhatsApp: 0086 133 8311 0583

NC cut off machine vailable breadth: 1400-2200mm

Specification:

1.Max machine speed: 200m /min, when cutting length is 0.5m speed is 100m /min

2.Cutting length: 500mm-9999mm, cutting accuracy±1mm

3.Up to 999 job size can be preset, auto change job size without machine stop,
connected with the computer to make production management easy

4.All drive gear made of high quality alloy steel, which are heat treated and
exactitude processed, high drive accuracy and long life

5.Circulating lubrication to insure lubricate and also help to clean and cool

6.Paper entering and out are separated, each have their frequency convert motor
to control speed, synchronized driven, stable and low noise

7.Double-row round wheels are used at entrance to reduce the cutting errors
caused by dithering of paper board.

8.Exit and sending platform use round wheels and conveyer belt, which make
paper board ejection steady.

9.Round wheels device pneumatic controlled, special design, easy to operate

10.Pedestal and wheel box made of grey cast iron, good steel and good shake-
resistance

11.AC servo-control system energy save above 30%

12.Motor

main motor: 37kw /55kw

oil pump motor: 0.2kw

convey motor: 2.2kw

Minimum Order: 1 sets
