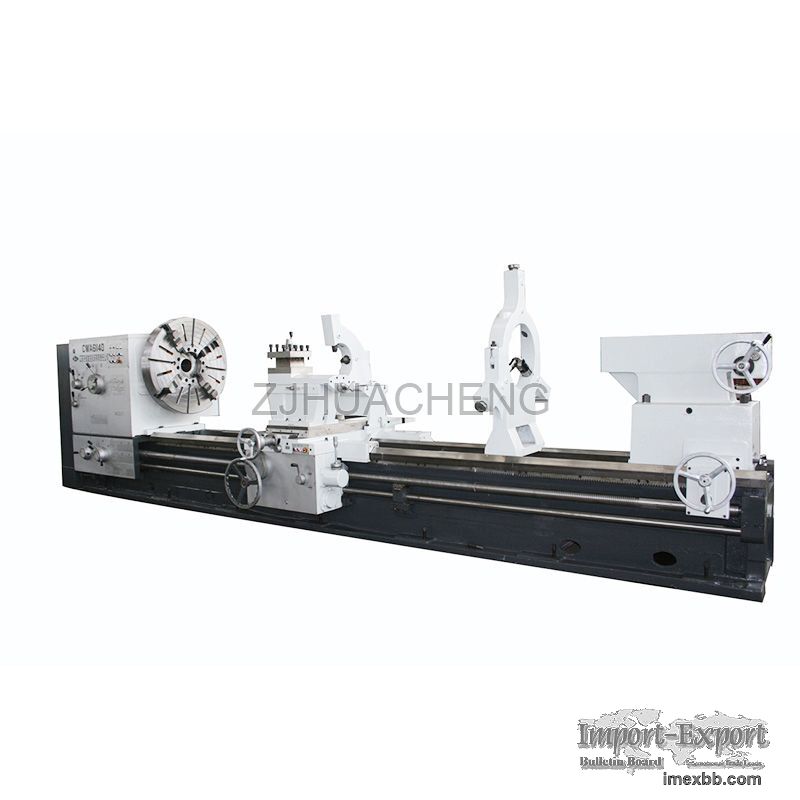

Huasheng-Unniversal Heavy-duty Lathe

Huasheng-Unniversal Heavy-duty Lathe
Spindle is three supporting structures, all of which are P5 class precision
bearings;

There is a safety mechanism in the cross sliding box, which can prevent the
lathe from being damaged due to overload.
https://www.zjhclathe.com/product-lis , t-heavy-duty-unniversal-lathe.html
The upper carriage can cut short cone by motor vehicle, and the compound
movement of longitudinal feed and upper carriage feed can cut long cone by
motor vehicle

The guide rail is quenching on the surface to improve the service life .

The operation handle of the lathe is centralized and easy to operate.
Heavy-duty Unniversal Lathe supplier: Zhenjiang Huasheng Intelligent Technology
Co., Ltd
Suitable for high-speed steel and hard alloy steel cutting tools to process
different materials of shaft parts, cylindrical and disk parts in turning outer
circle, end face, grooving, cutting, boring, turning and boring inner cone,
various threads and other processes.
You can click here to get the heavy duty lathe machine price
MODEL CWA61100 CWA61125 CWA61140 CWA61160
Max.swing over bed 1000mm 1250mm 1400mm 1600mm
Max.swing over cross slide 620mm 870mm 1000mm 1200mm
Center distance 1.5m 2m 3m 4m 5m 6m 8m 10m 12m
Width of bed 780mm
Max weight of work-piece 8T
HEAD STOCK
Spindle hole ∮130mm
Spindle taper Metric 140#
Spindle speeds 3.15-315r 2.5-250r
Forward 21kinds，Reversal 12kinds
GEAR BOX-THREADS&FEEDS
Metric threads range(kinds) 44kinds  1-120mm
Inch threads range(kinds) 31kinds  1/4-24 T/I
Module threads range(kinds) 45kinds  0.5-60mm
Diametral threads range(kinds) 38kinds  1/2-56DP
Longitudinal feeds range(kinds) 56kinds 0.1-12mm
Cross feed range(kinds) 56kinds  0.05-6mm
Rapid feed:Long/Cross 3400mm/min,1700mm/min
TOOL-POST

Minimum Order: 1 sets
