1. Overview

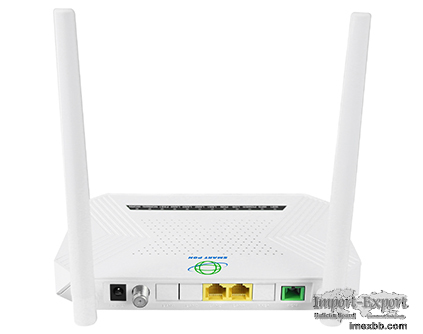

* SUR3107XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* SUR3107XR is based on mature and stable, cost-effective XPON technology.
* SUR3107XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3.Application
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、CATV etc

Technical item

Details
PON Interface

1 GPON BOB （Class B+/Class C+）
Receiving sensitivity: ≤-27dBm/≤-29dBm
Transmitting optical power:+0.5~+5dBm/+2~+7dBm
Transmission distance: 20KM
Wavelength

TX: 1310nm, RX: 1490nm
Optical Interface

SC/UPC Connector
Chip Spec

RTL9601D ,CPU 300MHz,DDR2 32MB
Flash

SPI Nor Flash 16MB
LAN Interface

1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
LED

4 LED, For Status of PWR、LOS、PON、LINK/ACT
Push-Button

2,For Function of Power on/off,Reset
Operating Condition

Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing Condition

Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply: DC 12V/0.5A
Power Consumption: <3W
Dimension: 120mmx78mmx30mm(L×W×H)
Net Weight: 0.13Kg

Minimum Order: 1 pieces
