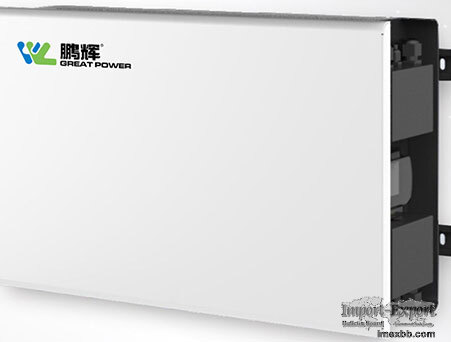

HOUSEHOLD ENERGY STORAGE SYSTEM

HOUSEHOLD ENERGY STORAGE SYSTEM
The maximum operating power is 3kw/5kw. These are several types of household
energy storage systems with different rated energy, that is The 5.8WKh and 23
WKh. This battery-based energy storage system is mainly used with solar panels
outside which is environmentally friendly. And its working temperature range is
wide from -20 to 60 °C. The maximum continuous output power of the single
machine is 5KW. The competitive edges of it are that quick storage retrofit on
existing PV plant, compatible with all inverter brands, built-in 5.1kWh lithium
battery (extendable), with UPS function, switch time≤10ms and easy setting of
various working modes.

PARAMETERS OF HOUSEHOLD ENERGY STORAGE SYSTEM
No. Items SPEC.
AS1-3KS-5.1 (Master Unit)
1 Total Energy Capacity/Wh 5120
2 Battery Capacity/Ah 100
3 Rated Voltage/V 51.2
4 Voltage Range/V 42-58.5
5 DOD ≤90％
4 Cycle Life ≥6000
5 Max. Charge Current/A 60
6 Max. Discharge Current/A 60
7 Scalability Yes (up to 20.4kWh）
8 Max. Continuable Output Power/VA 3000
9 Communication Mode Wi-Fi/4G/Ethernet (Optional）
10 Applicable Standard AS 4777.2 VDE 4105, G98, C10/C11, CEI0-21,
IEC62619, IEC62040



No. Item SPEC.
Parameters
1 Total Energy Capacity/Wh 5120
2 Available Capacity/Wh 4600
3 Rated Voltage/V 51.2
4 Voltage Range/V 42-58.5
5 DOD ≤90％
6 Cycle Life ≥6000
7 Max. Charge Current/A 60
8 Max. Discharge Current/A 60
9 Operating Temperature Range -10°C-50°C
10 Applicable Standard UN38.3 IEC 62619


No. Item SPEC.
PH-GSP27135250-15S1P
1 Total Energy Capacity/Wh 5120
2 Single Battery Capacity/Ah 100
3 Rated Voltage/V 48
4 DOD ≤90％
5 Cycle Life ≥4000
6 Max. Charge Current 1C
7 Max. Discharge Current 1C
8 Scalability Yes (up to 48kWh）
9 Size (H*W*D*, mm) 628*198*528mm
10 Weight 45Kg

HOUSEHOLD ENERGY STORAGE SYSTEM COMPETITIVE EDGES
A household energy storage system is currently divided into two kinds, grid-
connected and off-grid. A grid-connected household energy storage system is
mixed-powered by solar and the energy storage system, including five parts:
solar array, grid-connected inverter, BMS (battery management system), battery
pack and AC load.
Quick storage retrofit on existing PV plants.
Compatible with all inverter brands.
Built-in 5.1kWh lithium battery (extendable).
With UPS function, switch time≤10ms.
Easy setting of various working modes.

As a lithium battery exporter, we will do our best to meet all the needs of
customers.
