Hot Dipped Galvanized Gabion Mesh Cells

Hot Dipped Galvanized Gabion Mesh Cells

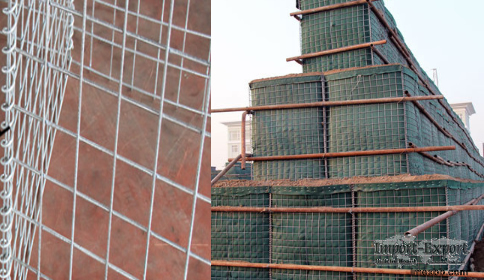

Hot dipped galvanized gabion wire mesh cells are used for building blocks of
airport and other projects, also for anti blast barriers in military uses. The
galvanized wire mattress or basket cells are mostly composed of square or
oblong opening welded panels. The gabion cell baskets are in rectangular shape
for easy laying and firmed building purpose. The gabion cell walls are
decorative as well as protective. Major materials for gabions cells are
electric galvanized wire , hot-dipped galvanized wire, pvc coated galvanized,
Galfan wire 95%zinc -5% Al and 90%zinc -10%Al. Aerct supplies three types of
gabion cells listed as below, we also welcome custom orders.

1, Galvanized Steel Gabion Basket Cells with Rectangular Mesh Holes:
Gabion basket, heavy type: 1000X2000X500mm;
Gabion basket, light type: 1000X500X1000mm.
Gabion cell wire diameter: Galvanized steel wire
Diameter of gabion mesh wire: ≥ 2.00 mm
Gabion Mesh Size or Aperture: 60X80 mm
Hole Shape: Oblong (rectangular)
Hot Dip Zinc coating quantity for galvanized wire: ≥ 2400 g/m2
Lacing wire: All gabions and mattresses cells use a 2.20mm wire diameter lacing
wire for binding and fixing together the mesh panels during the erection
process.
