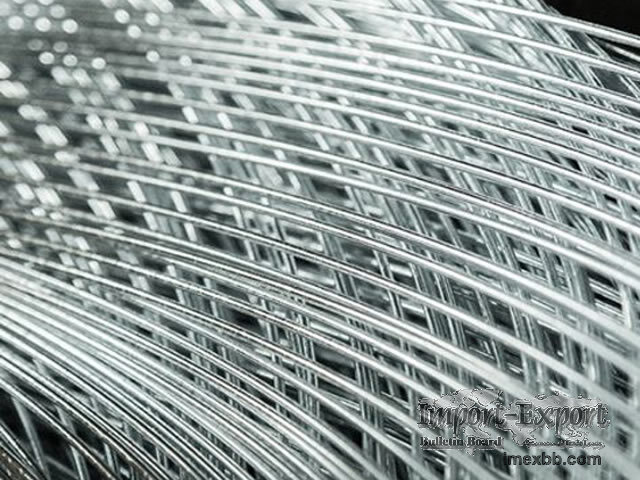

Hot Dipped Galvanised Iron Wire

We supply steel galvanized wire, hot dipped or electro galvanised. Hot Dipped
Galvanised Wire is processed by steel rod through wire drawing, heat treatment
and zinc plating.

Hot dipped galvanised wire is a heavily galvanized wire through melt zinc
coating process achieving excellent flexibility and softness. The thick zinc
coating of hot dipped galva. wire offers better corrosion resistance over
electro galvanized wire at a higher cost.

Application: As trying wire in agriculture for vines and orchards, as weaving
wire of galvanized wire mesh, hardware cloth, welded mesh in the fencing and
netting industry, as material for manufacture of springs, nails, ropes, wire
forms, packaging of products and other daily uses.

Raw Material: SAE 1006 -1070
Diameter of Wire: 1,40 - 4,00 mm
Tensile Strength:350 - 1800 N/mm2
Weight of Coil: 100 - 900 kgs

Hot Dipped Galvanised Steel Wire dia 2.9mm, 2.3mm, 2.0mm and 1.6mm is popularly
used for spring and tie wire, hot dipped galvanized steel wire with pvc coating
for binding has a popular dia 2.0mm and 1.6mm.

5mm High Tensile Strength Hot Dipped Galvanized Steel Wire
Type: Bare
Form: Stranded wrie
Application: Overhead guy wire / stay wire
Conductor Material: Galvanized Steel Wire
Sheath Material: Bare
Insulation Material: Bare
Material Shape: Round Wire
Standard: ASTM,BS,IEC,DIN
Color: Silver

Application
The galvanized single steel wires or stranded steel wires are suitable for
cores of ACSR to improve its tensile strength. Also used in the aerial
transmission line as the line material of ground connection to avoid the
lightning strike as Messenger Wire, Overhead Ground or Static Wire, Guy Wire.

Construction
Stranded galvanized steel wire is made of carbon steel hot dipped zinc plated.
The single wires are concentrically stranded and wrapped helically around a
central wire.

Standard
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire
for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
