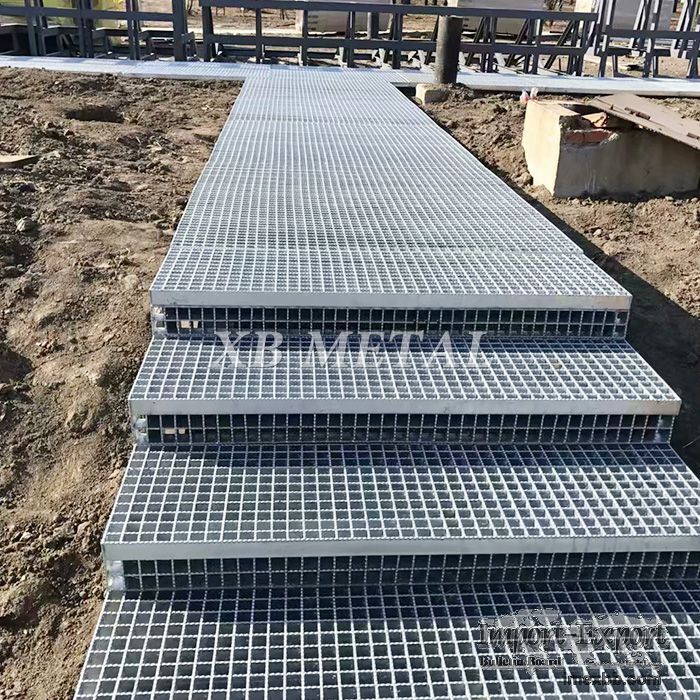

hot-dip galvanized steel grating For Drainage Covers

hot-dip galvanized steel grating For Drainage Covers
The steel grating adopts the world-class equipment from the Italian company
ORSOGRIL. The flat steel and the twisted square steel are distributed at
certain intervals. The computer-controlled high-voltage resistance welding
presses the twisted square steel into the flat steel to obtain a firm welding
joint. The board surface is flat and contains steel grating with extremely high
strength.
Parameter Data
Bear Bar Type Flat Bar, I-Bar, Serrated Bar, etc
Bearing Bar Size 20x5mm, 30x3mm, 30x5mm, 40x3mm, 40x5mm, 50x5mm, etc
Bearing Bar Spacing 30mm, 33mm, 40mm, 50mm or other size
Cross Bar Type Twisted steel bar, Flat bar
Cross Bar Size 6mm, 8mm or other
Cross Bar Spacing 50mm or 100mm
Weld Way Welded , Pressure-locked , Swage Locked
Material Grade Mild Steel(Q235B), Stainless Steel 304 or 316, etc
Surface treatment Hot dipped Galvanized, Spray paint or other
Standards Steel Grating Standard Steel Material Standard HDG Coating
Standard
China YB/T4001-2007 GB700-88  GB/T13912-92
USA ANSI/NAAMM(MBG531-88) ASTM-A36 ASTM-A123
UK BS4592-1987 BS4360(43A) BS729
Australia ASl 657-1992 AS3679 ASl650
The bearing flat steel standard of steel grating should be selected according
to the practical bearing requirements. Commonly used standards are: 25x3mm,
25x4mm, 25x5mm, 30x3mm, 30x4mm, 30x5mm, 32x3mm, 32 x5mm, 35x3mm, 35x5mm,
40x3mm, 40x4mm, 40x5mm, 50x3mm 50x5mm, 60x5mm, 65x5mm, etc. It can also be
customized according to customer requirements.
PRODUCT FEATURES
Steel grating is made by welding with flat steel and bars with certain
distances.It goes through cutting, opening, edging and other processes. The
products enjoy the features of high strength, light structure, high bearing,
convenience for loading and other properties.The hot dipped zinc coating gives
the product excellent anti-corrosion resistance.

Minimum Order: 1 square metres
