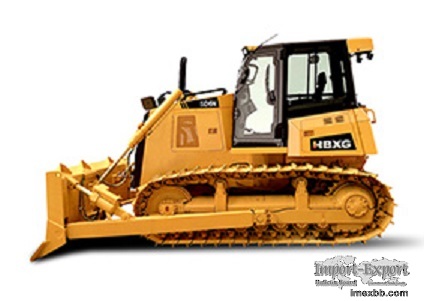

Horsepower track-type dozer bulldozer with elevated sprocket

Bulldozer Used For Electric Power Engineering:SD7N bulldozer is 230 horsepower
track-type dozer with elevated sprocket, power shift drive, semi-rigid
suspended and pilot hydraulic controls. It is integrate with modular design is
easy to repair & maintenance, It relieves oil with difference pressure, the
hydraulic system performs protecting environment and save energy with high
working efficiency. Safety comfortable operation condition, electric monitoring
and ROPS cabin with reliable entire quality, excellent service is your wise
choosing. It can be equipped with straight tilting blade, angle blade, coal
pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS,
FOPS, forest defence cabin etc.. It is can ideal machine used in communication,
oil field, power, mining etc. large earth moving program.
Performance Parameters Bulldozer For Civil Construction
Engine NT855-C280S10
Flywheel output 169KW/230HP
Operating weight 23800Kg
Ground pressure 71.9Kpa
Track gauge 1980mm
Gradient 30°/25°
Min. ground clearance 404mm
Dozing capacity 8.4 m³
Max. Digging depth 498mm
Overall dimensions 5677×3500×3402mm
