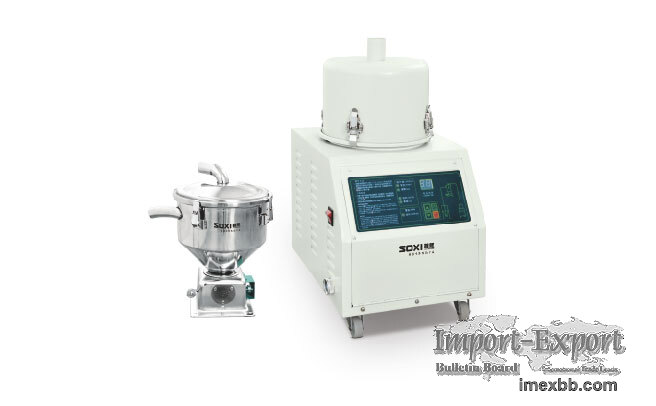

HOPPER LOADER (POSITIVE PRESSURE)

The main plastic material hopper loaders and the hopper adopt a separate
design, which can be matched with more than 2 hoppers for one-to-many
conveying, which improves the raw material conveying capacity, and the raw
material conveying capacity reaches 700 kg per hour. The maximum lift is up
to 10 meters, suitable for long-distance raw material transportation, easy
to operate, and can meet customer needs.

Specifications Of Hopper Loader (Positive Pressure)

Standard specifications SKA-300G SKA-400G SKA-700G
Conveying direction 1 1 1
Conveying capacity kg/h 200 300 350
Electric power Total power kw 1.1 0.75 1.1

Feeding blower power kw 1.1 0.75 1.1
Motor type Carbon brush Inductive Carbon brush
Electric power source Specification 220V 50Hz 2P 380V 50Hz 3P
220V 50Hz 2P
Dimensions (LXWXH) mm 340X370X570 370X450X660 360X390X560

Standard specifications SKA800G-15 SKA800G-20 SKA800G-30
SKA900G-15 SKA900G-20 SKA900G-30
Conveying direction 1 1 1 2 2 2
Conveying capacity kg/h 260 350 600 260 350 600

Electric power Total power kw 1.1 1.5 2.2 1.1 1.5
2.2
Feeding blower power kw 1.1 1.5 2.2 1.1 1.5
2.2
Motor type Inductive
Dimensions (LXWXH) mm 555X400X825 555X400X825 555X425X865
555X400X825 555X400X825 555X425X865
Weight KG 65 80 90 70 85 95

Hopper Loader (Positive Pressure) Working Princlple

Hopper Loader (Positive Pressure) Gallery
Plastic Loader
Hopper Loader (Positive Pressure) Gallery
Hopper Loaders For Plastics
Hopper Loader For Injection Moulding Machine

With strong manufacturing capacity and Digital production management, we
always have plastic machine for sale and plastics machinery for sale.
Delivery of equipment is fast and efficient.
