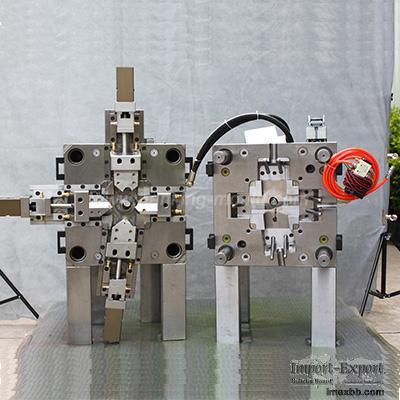

Home Appliance Mould

HanKing Mould Enginering Ltd. offer various products to meet people’s needs,
including home appliance mold .

Embroidery Machine Frame Mould
Plastic frame for a multi-needle embroidery machine.Mould Name：Embroidery
Machine Frame MouldPart Material：Pa 66 GF50%Product Size： Product Description
Large Embroidery hoop frameMould Cavity: 1 CavityMould Size...

Sewing Machine Frame Mould
Large Plastic Frame Mould, suited for oversize embroidery projects.Mould Name：
Embroidery Machine Frame MouldPart Material：Pa 66 GF50%Product Size： Product
Description Large Embroidery hoop inner frameMould Cavity...

Coffee Machine Spare Part Mould
Home Appliance Mould for coffee machine, HanKing Mould have experience in
different type Coffee Machine spare part moulds, some large part as housing,
and small part is the tiny plastic filter.Mould...

Coffee Machine Piston Mould
Plastic piston for world famous Coffee Machine company, HanKing can build all
size of plastic injection mould for home appliance and household industry, no
matter single or multi cavity mould, simple...

Plastic Funnel Mould
Mould Name： Plastic Injection Wall Plug Mold Part Material：PBT GF15 Product
Size： Product Description: Plug CH versionMould Cavity: 4 CavitiesMould Size:
392*300*335 MMSuitable Injection Machine:Mould Cavity...
Home appliance mould is also known as household appliance mould which is used
to produce plastic parts and components for the household electric appliance.

The household appliance moulds generally include interior plastic parts mold
and the exterior plastic housing or case.

For interior parts, dimensional accuracy is the most important, and there is
usually no special requirement for appearance, as long as it does not affect
the assembly of the products.

For exterior plastic housing or cases, the appearance and size are both
important, but the exception is that some housing or cases will go to secondary
processing, such as painting, plating etc., so that the injection-moulded
exterior housing usually is not required to be high polish, only in some
specific areas that affect the subsequent process are high polished.

How to ensure the accuracy of the plastic parts? First of all, to ensure the
accuracy of the mould steel dimension. In HanKing, all the dimensions in the
molds are within tolerance measured by CMM Zaiss before the moulds are
delivered to our customers. We have good designers with more than 15 years of
experience, providing good solutions and professional technical support. When
we are designing a house appliance plastic injection mold, we should choose the
mould steel by combining the total life cycles and the plastic resin of the
part. Make inserts as much as possible for important dimensions or special
structure area and some fragile ribs, because the inserts can be replaced and
convenient maintenance after a long period of production. And machining by
grinder as much as possible, in terms of accuracy, the grinding machine has
its' advantage.

Every kind of machine has different advantages, toolmakers should understand
the advantages of these devices and make the best use of them to help to make
good quality moulds. Another point, keep some clearance for the mould steel is
also very critical to get correct dimension parts.

Of course, it is far more than these points to make good quality moulds, please
contact us and tell us your needs, Hanking moulding look forward to providing
our professional support for your project.

Minimum Order: 1 sets
