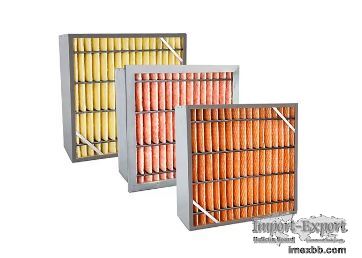

Home 0.5um Air Purifier Pre Filter NH3 H2S Gases Removal Replacement

1. Contaminated Gases to be Removed: Acidic gases (H2S, SO2, Cl2, HF, HCl, HBr,
HNO2, HNO3, H2SO4..) & VOCs & Dopants

2. Model No.: GYK-C290

3. Size: 595x595x290mm

4. Certification: ISO9001, ROHS-SGS

5. Performance Assurance: Initial Removal Efficiency, Accelerated Adsorption
Capacity, Organic & Inorganic Outgassing, Particle Emission, Pressure Drop - By
ITRI (Industrial Technology Research Institute)

6. Features: Long service lifetime, High initial removal efficiency, Low
pressure drop, Clean operation with low particle emission, Free from organic
and inorganic outgassing

7. Applications: Clean room (Semiconductor, LCD, LED, Solar Cell,
Microelectronics, Pharmaceuticals), Hospitals, Museums, Factories



Product Name
--
Chemical Filter for Acidic Gas Removal
Filter Type
--
Pleated Filter
Model No.
--
GYK-C290
Dimension
mm
595x59 , 5x292
Airflow
CMH
3200
Pressure Drop
Pa
100 +/- 15%
Media Type
--
Chemsorb Type A (activated carbon)
Target Gases
Acids
H2S, SO2, Cl2, HF, HCl, HBr, HNO2, HNO3, H2SO4 & VOCs & Dopants
Initial Removal Eff.
--
>95% (H2S)
