HM-KL915 CNC Honing Machine with Finishes of 0.1-0.2 um

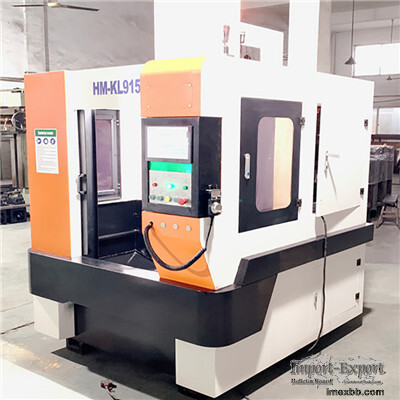

HM-KL915 CNC Honing Machine
Max Honing Diameter: Ø12--Ø200mm
Max Honing Depth: 600mm

Main Specification:
1 Machining Hole Diameter Ø12-Ø200mm
2 Allowable load of table 200kg
3 Maximum stroke Depth 600mm
4 Spindle motor power 1.5KW
5 Spindle reducer ratio 3：1
6 Spindle Speed range 100-1000rpm(CVT)
7 Return Oil Pump flow 100L/min
8 Stroke Motor 2.2KW
9 Stroke Control Type “Servo Motor+Ball Screw”
10 Stroke Speed 0-40m/min(CVT)
11 Honing tool Qty 1 Axis
12 Single Working Station 1（Single Honing tool）
13 Feeding Torque ≥20NM
14 Honing Accuracy ≤0.1mm
15 Feeding Type Constant feed
16 Machine Weight About 2.5 Tons
17 Machine Size L×W×H 1500×1500×2700mm
18 Noise standard Less 80 dB Normally

Wuxi Geepro Machinery Import & Export Co., Ltd. has been focusing on Gear
Machinery since 2007 and is one of the most professional CNC Gear Hobbing
Machine Manufacturers In China, export CNC Gear Hobbing Machine, Honing Tools.
If you are interested in our products, please click here to visit our website
and be happy to become a partner.
