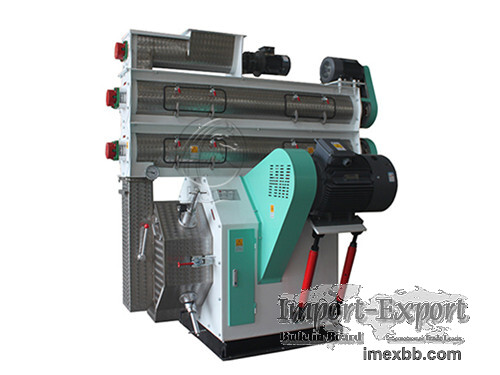

HM Belt Type Feed Pellet Mill

HM Belt Type Feed Pellet Mill Introduction
The belt-type ring dies feed pellet machine is a large-scale feed pellet machine, which is
used to make corn stalks, bean stalks, flower seedlings, sweet potato wine, clover, rape
straw, etc. into cattle feed, pig feed, cattle feed, sheep feed, rabbits feed, chickens feed,
ducks feed, etc. The ring dies feed machine is the preferred equipment for making feed in
large and medium-sized feed factories and various livestock farms. It is suitable for
granulation in feed mills, farms, and chemical industries. This ring dies feed grinder can
make various materials into pellets for livestock feed, grass powder, and organic fertilizer
materials.

Feed Pellet Mill Structure
Our feed pellet machine is mainly composed of a feeder, modulator, pellet mill, lubrication
system, and so on. The operation process requires that the mixing degree of the material
should not exceed 15%. The material enters the feeding screw through the silo. Change the
speed by adjusting the step-less speed regulation motor to make the material flow moderately.
Then start tempering by mixing with steam through a paddle mixer. After tempering, the
material temperature can be between 64°C and 84°C, and the humidity can be between 14% and
16%. Finally, the material enters the press box through the chute for granulation.

HM Belt Type Feed Pellet Mill Features
1. The feeder of our belt-type feed pellet machine adopts the originally imported frequency
conversion controller, and the feeding is uniform and accurate.

2. The conditioner is all made of stainless steel to ensure that it will not deteriorate in
the steam environment for a long time. It is also designed with inspection doors for easy
cleaning and maintenance. During the tempering process, the feed is in full contact with the
steam, and the degree of maturation of the feed is higher, which is conducive to the
production of high-quality pellet feed.

3. The feed inlet is designed with a deflector, which can control the flow direction of the
material (into the cutting chamber or directly discharged from the bottom). It is convenient
to prevent materials with the wrong ratio from entering the granulation system.

4. The transmission belt adopts a high-strength SPB V-belt, the transmission is stable and
reliable, and the noise is low.

5. The ring die is also made of 100% stainless steel for extra durability. There are a variety
of apertures for you to choose from (φ1.5mm~φ12mm), and the compression ratio is customized
according to your specific raw materials.

6. The quick-release hoop mold design makes replacement more convenient and greatly improves
production efficiency.

7. One-piece spindle, easy to disassemble and assemble, good mechanical performance.

8. Scraper: 1 outer scraper, 2 inner scrapers. (Outer scraper is used to cut feed pellets with
adjustable pellet length; inner scraper is used for mixing and deflection)

9. Reasonable lubricating system design (spindle, pressure roller): specially designed
refueling holes to achieve non-stop refueling.

Minimum Order: 1 sets
