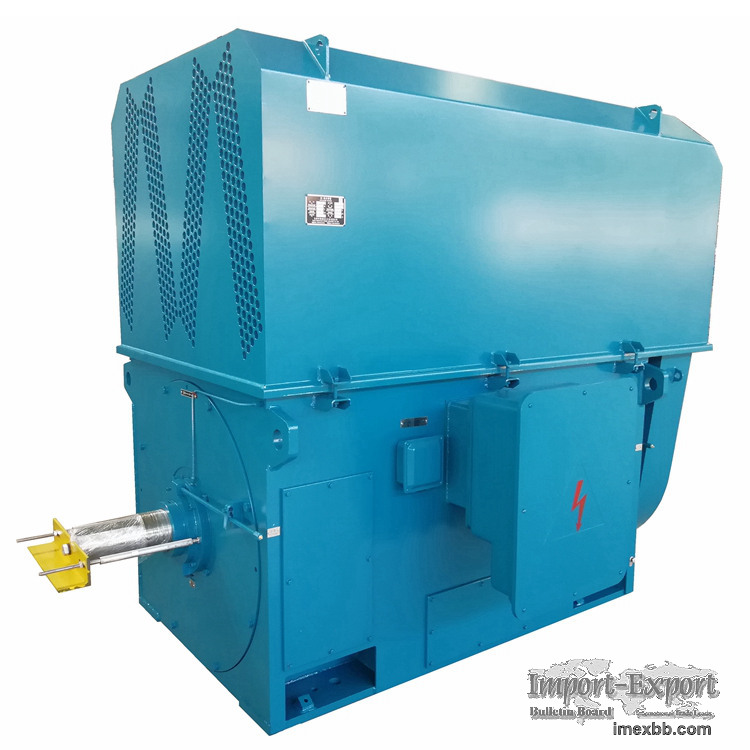

High Voltage Squirrel Cage Induction Motor

YKK series squirrel cage high-voltage three-phase asynchronous Induction motor
is a cage-type asynchronous motor with closed air-to-air cooler. This series of
motors is rated IP44 or IP54 and the cooling method is IC611.
YKK series high-voltage three-phase asynchronous Induction motor is a cage
asynchronous motor with closed air-to-air cooler. The base and end cover are
made of steel plate. The box structure is adopted. The top cover can be opened
to observe the internal condition of the motor. All components can be
disassembled and assembled for convenient installation and maintenance.
YKK high-voltage squirrel cage Induction motor has the advantages of high
efficiency, energy saving, low noise, small vibration, light weight, reliable
performance, convenient installation and maintenance. Can be used to drive a
variety of different machinery. Such as ventilators, compressors, pumps,
crushers, cutting machine tools and other equipment, and can be used by coal
mines, machinery industry, power plants and various industrial and mining
enterprises.
The structure and installation form of YKK series high-voltage squirrel cage
asynchronous  Induction motor is IMB3. The quota is continuous rating based on
continuous working system (S1). The rated frequency of the motor is 50HZ, the
rated voltage is 6KV/10KV, other voltage grades or special requirements are
ordered. It can be agreed with the user.
Squirrel Cage High Voltage Motor
Center height range: H355~1000mm
Power range: 185kW to 12000kW
Number of poles: 2/4/6/8/10/12/16
Rated voltage: 3000V/3300V/6000V/66000V/10000V/11000V
Rated frequency: 50HZ/60HZ
Protection level: IP54 or IP55
Insulation class: F
Work system: S1 (continuous)
Cooling method: IC611/IC616
Installation form: IMB3
