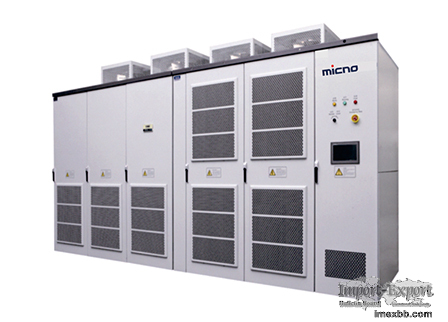

High Voltage Inverter

MICNO high voltage inverter adopts the most mainstream power unit series
technology, with DSP+ARM+FPGA three-core processor as the control core. The
high voltage frequency converter integrate the most advanced motor vector
control algorithm, high control precision, fast response, low frequency, high
torque. Our high frequency power inverter can be applied to energy-saving speed
regulation and process improvement of high-voltage asynchronous motors and
synchronous motors.

What Is a High Voltage Frequency Converter?
The high-voltage inverter converts direct current (DC) from the batteries or
generator to alternating current (AC) to power the drive motors.

High Frequency Power Inverter Main Circuit
The high frequency power inverter includes two parts, main circuit and control
circuit. The main circuit includes an inverter DC power supply, high frequency
high voltage transformers, IGBT bridge inverter, protection circuits, high
frequency high voltage silicon stack (Rectifier) , etc. The control circuit
includes a current, voltage sampling and processing unit, driver circuit, PWM
signal generation, micro-controller, keyboard and LCD parameter input, part of
the communications interface.

This high frequency power inverter let the whole system has a complete user
interface and intelligent characteristics such as self-diagnosis.

Shenzhen MICNO Electric Co., Ltd. is one of human machine interface
manufacturers. We provide Servo System, Spare Parts, high frequency inverter
for induction heating, high voltage vfd, high input voltage inverter, high
voltage power inverter and so on. Want to know about high voltage inverter
price? Please contact us.
