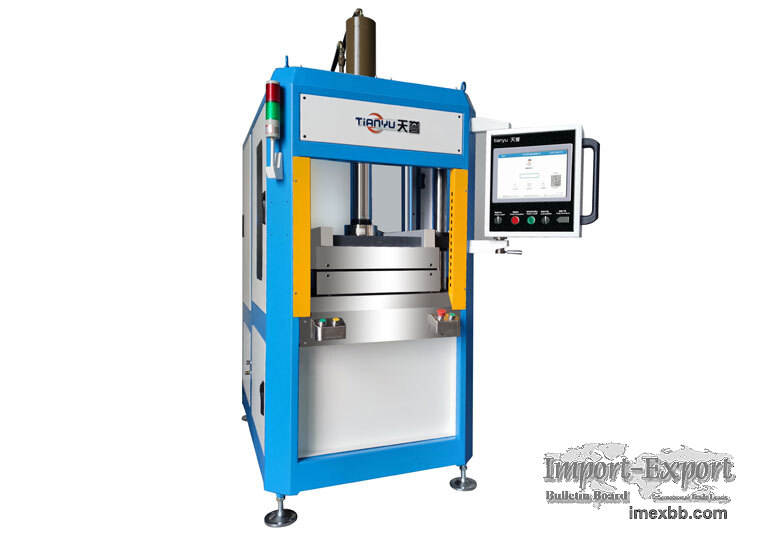

HIGH TEMPERATURE VACUUM HEAT PRESS

Hot press vacuum press is used for the test parameters of the material
properties, including the fluidity of composite materials, resin fluidity,
and gel time. The composite material is formed after hot pressing and curing.
The parameters of temperature and pressure in the hot pressing process are
the two important parameters for composite forming. With reasonable design
and concise configuration, the hydraulic heat press machine in our
laboratory adopts the temperature controller, PLC controller, and servo
controller and connects with the HMI (human-machine interface) for
communication.

HMI (human-machine interface) sends the industrial parameters to the
temperature controller in real-time. Meanwhile, the PLC controller and servo
controller record the actual working parameters into the database in real-
time, which can accurately control the working temperature and pressure
accuracy. It will be helpful for the process parameter setting, process
control, monitoring in real-time, and post-tracking of composite hot
pressing, which meets the requirements of actual use.

Purpose Of High-Temperature Vacuum Heat Press
Hot press vacuum press is used for the test parameters of the material
properties, including the fluidity of composite materials, resin fluidity,
and gel time. The composite material is formed after hot pressing and curing.
The parameters of temperature and pressure in the hot pressing process are
the two important parameters for composite forming. With reasonable design
and concise configuration, the hot press in our laboratory adopts the
temperature controller, PLC controller, and servo controller and connects
with the HMI (human-machine interface) for communication.

HMI (human-machine interface) sends the industrial parameters to the
temperature controller in real time. Meanwhile, the PLC controller and servo
controller record the actual working parameters into the database in real-
time, which can accurately control the working temperature and pressure
accuracy. It will be helpful for the process parameter setting, process
control, monitoring in real-time, and post-tracking of composite hot
pressing, which meets the requirements of actual use.

Equipment Function Of High-Temperature Vacuum Heat Press
1. Provide 20-200kn settable press mounting force (set on the screen) and
non-standard customization;

2. The temperature of the upper and lower heating plates is controlled
separately and heated at a constant temperature, and the heating temperature
can be set in real time (normal temperature - 300 ℃);

Minimum Order: 1 pieces
