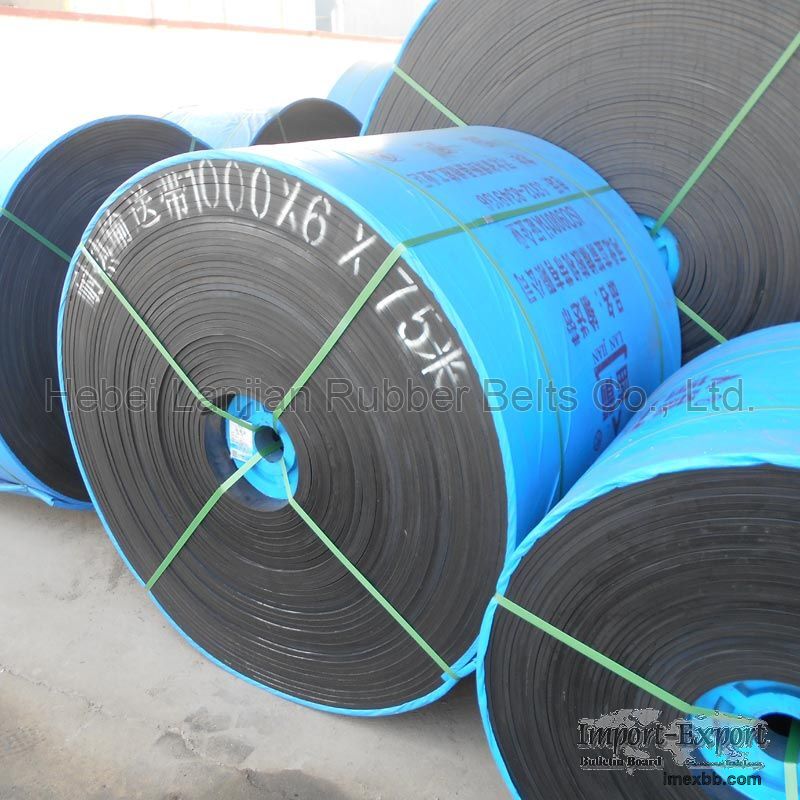

High Strength Ep Polyester Rubber Conveyor Belt PRODUCT DESCRIPTION

High Strength Ep Polyester Rubber Conveyor Belt PRODUCT DESCRIPTION
Polyester conveyor belts,also called EP conveyor belts, whose tension resistant
body is canvas woven by polyester in warp and nylon-66 in weft. The belts have the
characteristics of low elongation in warp and good trough ability in weft, good
water resistance, good wet strength, no mould, suitable for medium, long-distance
and heavy-load transportation of materials. Because of the high initial modulus of
polyester, the belts can choose a relative low safety factory
High Strength Ep Polyester Rubber Conveyor Belt APPLICATION FIELDS
Metallurgy, steel plant, building material and construction, energy, chemical,
machinery equipment and port.
TENSILE STRENGTH
Tensile Strength: 500-3200 N/mm
Width: 500-2400 mm
FEATURES & BENEFITS
1, Reduced strength
The combination of fabric design and dip process provide less elastic and
permanent elongation on all specifications. This minimizes take-up concerns and
reduce the number of splice at break-in.
2, High-modules, superior troughability characteristics.
With the high-tension PET warp and NN66 fiber could provide the belt high-modules
and superior troughability characteristics.
3, Variety choices of cover types and thickness.
If you would like more information, please contact us.
