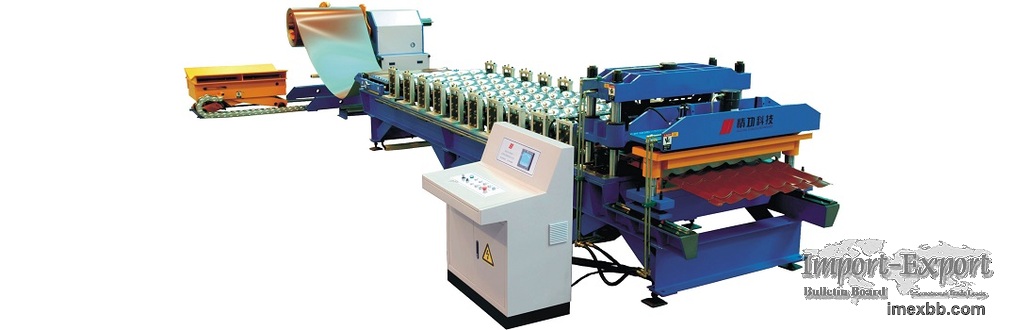

High Speed Tile Forming Machine

This series of high speed tile roll forming machine is a new-generational type
roof tile roll forming machine with high speed and high-efficient, including
decoiler system, sheet guiding system, roll forming system, pressing system,
cutting system, auto-stacker system, hydraulic system, controlling system,
etc.The common thickness for final products is normally 0.4-0.8mm to different
profiles and materials. We also have other roll forming machines, like the
ridge cap and downpipe machines for roof use.
Tile roll forming machine for sale on jinggongmachine.com, contact us right
now!

Technical Parameter Of High Speed Roll Forming Machine
Item parameter
Modle HVM-183
Material Type Colored steel sheet
Thickness 0.4-0.7
Yield strength 230-300
Max.Forming speed 4-5
Roller material 45#Steel with chrome coated
Roller driven type Chain transmission
Controller PLC
Operation Touch screen+button
Hydraulic system pressure 13
Hydraulic station motor power 7.5
Main motor power 4
Total power 11.5
Total weight About 10000

Technic Flow Of High-Speed Tile Forming Machine
Decoiling→guiding and feeding→roll forming→pressing→cut to length→run out
table

Panel Drawings Of High Speed Tile Forming Machine

Jinggong is a professional purlin roll forming machine manufacturers, we
provide c purlin roll former, building materials equipment, construction
materials equipment, sandwich panel lines and etc. Want to know more? Please
contact us.

Minimum Order: 1 sets
