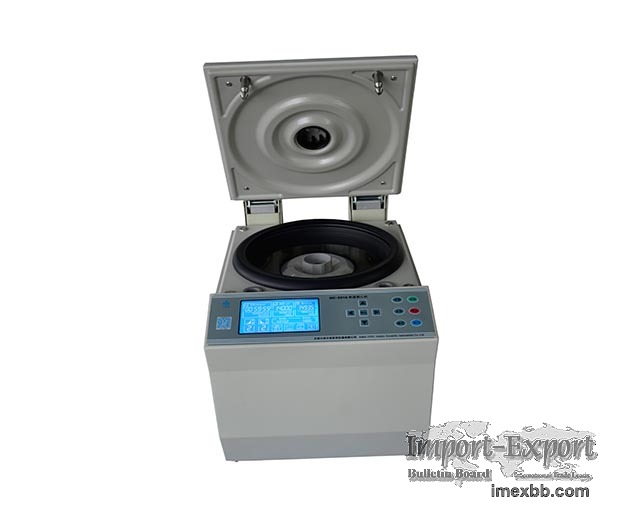

HIGH SPEED REFRIGERATED CENTRIFUGE HC-2518HR

Description of High Speed Refrigerated Centrifuge HC-2518HR

High Speed Centrifuge features with table type, and is diven by AC frequency
conversion motor. The high speed centrifuge has a microcomputer to control
the rotation speed and centrifuging time controller. Its maximum speed can
be up to 18,000 rpm, and maximum relative centrifuge up to 23545*g.

Specs of High Speed Refrigerated Centrifuge HC-2518HR

Microcomputer control, LCD liquid crystal display(LCD)

Imported refrigerating compressor, high refrigeration efficiency.

AC frequency conversion motor drive, quiet operation clean.

Offers nine ascending and descending rate selection mode, Offer ten kinds of

working mode selection, can free programming call.

Speed/centrifugal force can be set and double synchronous display screen

Full steel structure, Stainless steel centrifugal cavity

Two optional timing mode: run start timing and timing starts to set speed,
easyto switch.

Door with double lock rod design, magnetic locks, electric door, more safety
and reliable operation

Can change at any time in the operation of the parameters without downtime

Automatic balance without balancing

Automatic identification of rotor

Turned to use memory function, turned to the service life of the machine
will alarm prompt, prevent the security hidden danger.

Technical Data of High Speed Refrigerated Centrifuge HC-2518HR

Items HC-2518R
Max speed 18000rpm
Max Rcf 23486× g
Speed accuracy ±100rpm
Temperature
range -20°C~ +40°C
Temperature
accuracy ±2°C
Noise ≤55dB
Timer range 1min~99:99:59 (hh:mm:ss)
Construction All-steel construction
Stainless steel centrifugal chamber
Power supply AC 220V 50HZ
Power 1100
Weight 75kg
Dimensions (LxWxH)mm 540*520*430

Model Rotor capacity Max speed Max RCF
H240.2 24×0.2ml 18000rpm 18824× g
H120.5 12*0.5ml 18000rpm 16300× g
H240.5 24*0.5ml 18000rpm 23846× g
H1202 12×1.5ml/2.2ml 18000rpm 23198× g
H2402 24×1.5ml/2.2ml 14000rpm 17465× g
H1205 12*5ml 16000rpm 17459× g
H1207 12*7ml 14000rpm 16327× g
H1210 12*10ml 12000rpm 13363× g
H320.2 32*0.2ml 14000rpm 13367× g

Zonkia is a professional medical laboratory equipment suppliers, we provide
centrifuge 14000 rpm, fridge with solar panel and etc. Want to know more?
Please contact us.
