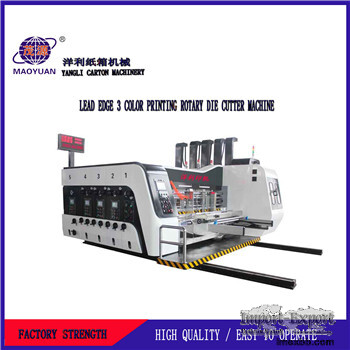

High Speed Printing Slotting Die Cutting Machine

Corrugated Box Printing Machine Cardboard Box Die Cutting Machine

Yangli High Speed Printing Slotting Die Cutting Machine is designed and
manufactured according to requirements, high standard, high reliability and
safety. Adopt PLC independent control, color touch screen display, intuitive
parameter setting and display.

Corrugated Boxes Machine Description
1.The whole machine is designed and manufacture in accordance with the
requirements,high standard、high reliability and safety.
2.The machine adopts PLC control alone, color touch screen display, parameter
setting and display intuitive.
3. All the electrical appliances, electronic and pneumatic components adopt
international famous brand products.
4.The selection of high quality, high standard materials and accessories.
5. All the main drive gear with special imported materials, with high
precision grinding, durable, gear lubrication adopts oil pump spray system.
6. Auto zero reset.
7.You can store different orders, speed up the order operation.
8. The key free collar, long-term effect and high printing precision.

High Speed Automatic Printer Slotter Die Cutter Machine CONFIGURATION
PARAMETER UNIT MODEL
MSB-480-2600 MSB-480-2800 MSB-480-3000
LNNER WIDTH MM 2600 2800 3000
MAX PAPER SIZE MM 1400*2300 1400*2500 1400*2700
MAX PRINTING SIZE MM 1400*2200 1400*2400 1400*2600
INTERVAL FEEDING SIZE MM 1800*2200 1800*2400 1800*2600
MAX SPEED PCS/MM 150
ECONOMIC SPEEED PCS/MM 100-130
TOPPING PRECISION MM ±0.5（four colors)
STANDARD PLATE THICKNESS MM 7.2
MIN SLOTTING SIZE SLOTTING TYPE R (MM) 150*150*150*150
SLOTTING TYPE L (MM) 230*60*230*60
MAX SLOTTING DEPTH MM 350

High Speed Automatic Printing Slotting Die Cutting Machine Specifications
1.advanced front feeding system, simple operation, high precision.
2.7.5 kw high pressure centrifugal fan, can adjust the air volume, according to
the cardboard warping degree to ensure smooth into cardboard.
3.baffle position by lead screw drive electric adjustment, or baffle pneumatic
film device.
4.every piece of paper, can choose according to need every piece of paper and
cardboard of large size also can process.
5.and 7 "true color touch screen installation, 200 groups can be preset orders,
inquiries orders, zero. The order entry, the machine synchronous zero, phase
automatic/manual adjustment, machine parameters management, lift fall edition
distributing manual/automatic control, automatic display production quantity
and production speed and set production quantity.
6.with slot department is equipped with interlocking control switch, stop, stop
sending or reset to send paper, positive and negative rotation, each unit of
phase points, humanized operation.
7.with slot department is equipped with interlocking control switch, stop, stop
sending or reset to send paper, positive and negative rotation, each unit of
phase points, humanized operation.
8.use brush to wipe the dust device, and is equipped with a powerful negative
pressure suction fan, remove dust on the surface of the cardboard, paper scraps
and other sundry, improve the quality of printing.

PRINTING DEPARTMENT
1. the production of high quality steel, surface grinding, hard chromium
plating. Static balance adjustment, stable running and adapt to the high- speed
operation.
2. roll horizontal direction and circumferential direction henceforth have its
official line, convenient to version.
3. ratchet fixed volume axis version, the left and right sides lock device,
make hanging version registration more fast and accurate.
4. install the foot switch control plate drum positive &negative, convenient
change version.
5.clearance adjustment self-locking worm gear box with high precision, and is
equipped with three stem disc handle, convenient and quick. Adjusting range 0
to 11 mm.
6.delicate high quality seamless steel tube processing, steel pipe surface
grinding and hard chromium plating, dynamic balancing correction.
7.printing phase PLC touch screen control and electric digital 360 ° adjusted
(motion and stop all can be adjusted).
8. automatic zero device, to ensure that the unit has a unified adjust
benchmark, testing-run a commonly can adjust the correct position, reducing
waste of cardboard.
9. pressure type and automatic lifting gear roller, and idle device, feeding
anilox roll down when in contact with the plate, stop feeding anilox roll
automatically rise and plate separation, in order to protect the plate; Don't
press automatic idling, prevent the ink dries up

SLOTTING DEPARTMENT
1. adjusted by electric control knife axis, vertical and cases of high
dimensions.
2.clearance adjustment adopts high precision self-locking worm gear box,
equipped with three stem disc handle, convenient and quick. Adjust the range of
0-11 mm.
3. planetary gear structure, long service life.
4.slotting phase PLC touch screen control and electric digital 360 ° adjusted
(motion and stop all can be adjusted). Phase zero device.
5. double slot, single axis, high box to adjust the internal tooth electrical
structure, make the lubricating oil is not easy to pollution of the cartons.
And high adjusting box collision protection, not damage the machine.
6.adopt unique play chip type dust removal device, easy to operate.

1.soft roll cutting mechanism to improve slab repeat usage。
2.linear speed automatic compensation to ensure that each batch of carton die-
cutting size exactly.
3.the CAM type soft roller transverse moving 40 mm, MATS wear uniform, improve
the utilization rate of foot pads to reduce the cost. Die-cutting phase adopts
electric 4,
4. 360 ° digital adjustment (motion and stop all can be adjusted).
5.paper feed axis, polishing, plating hard chromium, equipped with four wheel
feed.
6.the feed roller gear are no clearance regulating mechanism, adjustment does
not affect the gear wheels, guarantee the transmission accuracy.
7.clearance adjustment self-locking worm gear box with high precision,
convenient and quick. Adjusting range 0 to 11 mm.

Our company is specialized in producing Corrugated Cardboard Production Line,
Printing Machine. If you are interested in our products, please contact us as
soon as possible.
