High Speed 3d & 2.5d Scanning System 14mm

The 2.5D&3D system has the function of conventional 2D galvanometer, and a zoom
module is added on the basis of the conventional galvanometer, which solves the
problem that the traditional laser scanning galvanometer can only realize plane
scanning and small range scanning, and can complete laser processing system
applications requiring dynamic zoom. Mainly used in glass drilling, 3D curved
marking, welding, laser digging groove, step surface marking and so on. At the
same time, this galvo head has the characteristics of high precision, high
stability and support for function customization.

Key Features Of High Speed 3d & 2.5d Scanning System 14mm

Using 14mm 2D galvanometer and VCM-Z reflection z-axis focusing system, X, Y,
Z-axis dynamic response perfectly matching, realizing high-speed 3D processing

UV, green and infrared three bands available

High speed glass drilling applications with front focusing field mirror

Optional 14mm UltraScan and Extrascan galvanometers are available according to
customer's different accuracy and speed requirements

Specifications Of High Speed 3d & 2.5d Scanning System 14mm

ltem Unit Parameter

Power Supply Input Voltage vac 170-264
Output Voltage vdc ±15
Current a 10

Control Card Input Interface XY2-100
Output Interface Entermet Port
Laser Type Ultraviolet、IR、Green

Environmental
R , equirement Ambient Temperature ℃ 0~+40
Storage Temperature ℃ 一10~+60
Humidity ≤75%  Non-Condensing

Specifications
For
D , efiection
Unit Scan angle ° ±11.5
Repeatability urad 5
Max.Gain Drift ppm/K 12
Max.Offset Driff urad/K 30
Long-Term Driff Over 8h mrad 0.3
Maximal Processing Speed s 650
Small Step Response ms ≤0.18
Dynamic zoom system parameters Small Step Response ms ≤1.6
Specifications
For
Optics Laser UV Laser YAG/Fiber Green
Wavelenth nm 355 1064 532
Coating Anti-Reflection Film
Aperture Size mm φ14
System Input Laser Beam mm 9 7 3.5
Specifications
For Structure Weight Kg 8
Dimension(L×W×H) mm 324x140x181.5
3D system
Field Size&
Spot Diameter
Ultraviolet Field Size mm 100x100x40 200x200x80
300x300x150 400x400x150 500x500x150 600x600x150
The Smallest Spot diameter1/e² mm 0.009 0.015 0.022
0.026 0.033 0.039

IR Field Size mm 60x60x60 100x100x90 100x100x40
200x200x80
The Smallest Spot Diameter1/e² mm 0.021 0.027 0.025
0.0415

Green Field Size mm 100x100x40 200x200x80 300x300x150
400x400x150 500x500x150 600x600x150
The Smallest Spot diameter1/e² mm 0.013 0.023 0.031
0.04 0.0496 0.059

2.5D system
Field Size&
Spot Diameter
Green 2.5D  System Wavelength nm 532nm
Aperture Size mm φ14
System Input Laser Beam mm φ3.5
Field Size mm 70x70
Focus Range In Z-Direction mm ±5mm
Distance Of F-Theta From Working Face mm 93.03mm
The Smallest Spot diameter1/e² mm 0.01mm
Application Industry Glass Panel Cutting&Driling
Machining Efficiency
3mm Thick Glass,with Aperture Of 4.6mm, Cutting Time≤15s

IR 2.5D System Wavelength nm 1064nm
Aperture Size φ14
System Input Laser Beam 7mm
Field Size mm 210*210
Focus Range In Z-Direction mm ±20mm
Distance Of F-Theta From Working Face mm 330mm
The Smallest Spot Diameter1/e² um 45

Hans scanner provides galvo head, galvanometer scanner, laser galvo and etc. If
you want to know more, pleasecontact us.

Minimum Order: 500 kilograms

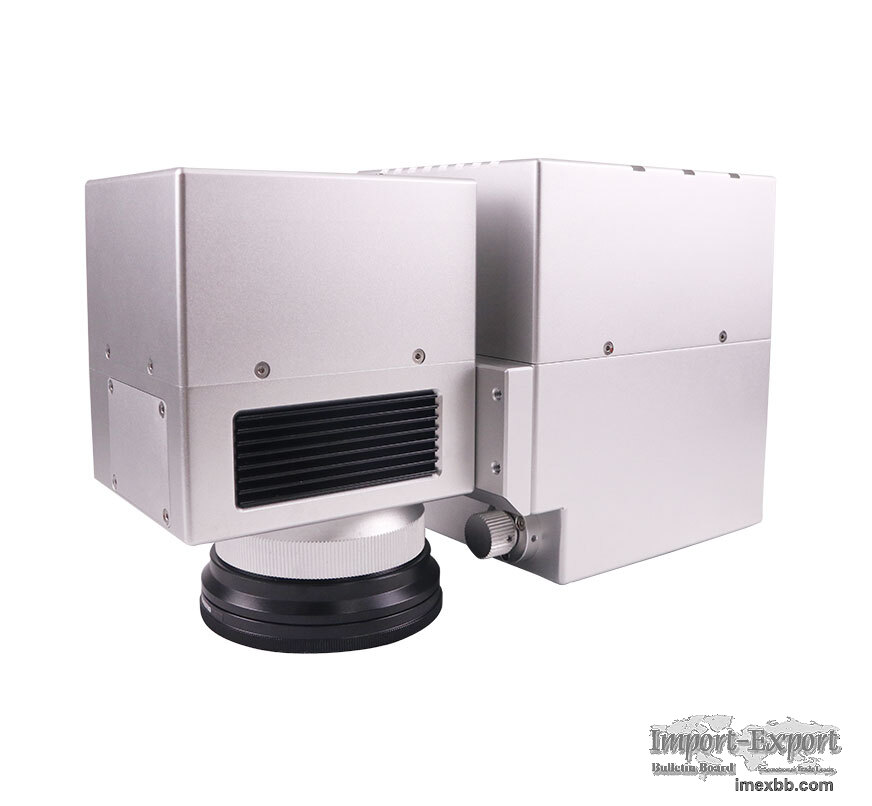

High Speed 3d & 2.5d Scanning System 14mm
