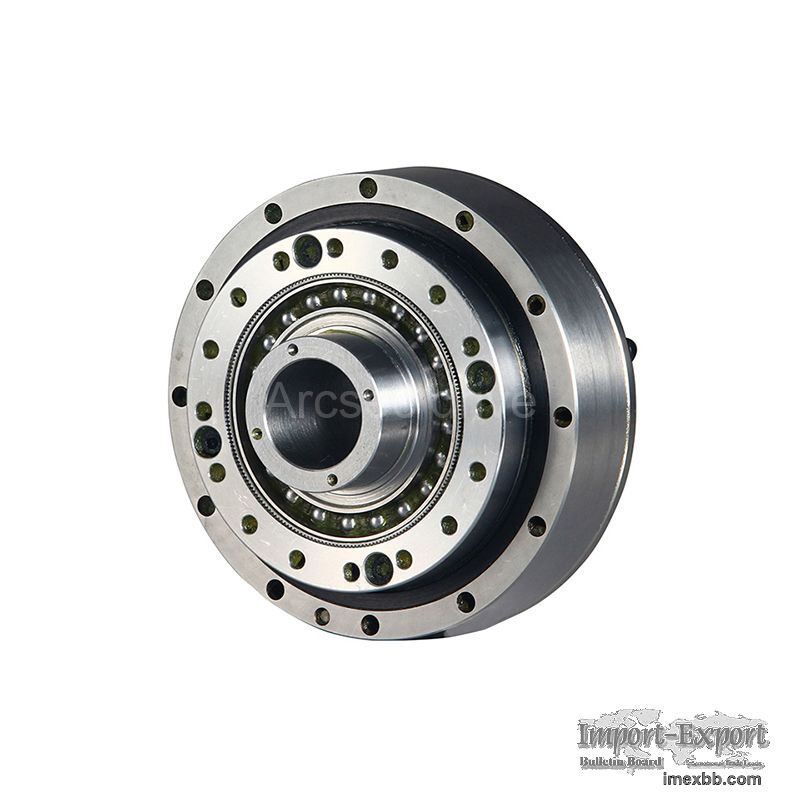

High Quality Zero Backlash Harmonic Drive ADH-V

Which is a compact structure mechanism including three main parts as wave
generator, flex-spline and circular spline, combined with high rigidity cross
roller bearing is a very robust and easy to use gear-head solution, widely
applied for industrial robot and precision machinery.
Arcsec Drive Harmonic Drive Solutions
Arcsec Drive Harmonic Drive Solutions (strain wave gearing) offers the ultimate
in precision motion control technology. Our harmonic drive product range
includes gearheads and component sets.
Harmonic drive gearing is low to zero backlash by design. It provides high
transmission accuracy and can support a high ratio reduction in a single stage
with lower inertia. The highly accurate, torque dense design makes harmonic
gears a great solution for robotic and positioning applications.
We manufacture a wide range of harmonic drive gearing options in our line of
Arcsec Drive Harmonic Drive Solutions.
Advantages
1,High Precision Gear
Many teeth in the position of the two 180-degree symmetry Joggle.Gear tooth
pitch error and the cumulative influence of pitch error on rotation accuracy is
average. Very high position accuracy and running accuracy can be obtained.
2,High Ratio
Single harmonic drive gear ratio of up to i=30 to 500. Simple structure, three
basic components on the shaft can be achieved with high reduction ratios.
3,High Load Capacity
Harmonic drive, tooth and meshing of the teeth is the contact, together with
colleagues more meshing number of teeth, thus the load per unit area is small.
Higher load capacity than other forms of transmission.
4,Small Volume and Light Weight
5,High Transmission Efficiency and Long Service Life
6,Stable Transmission and Low Noise
ADH series
A combination product that with large diameter hollow hole,flat shape,which is
easy to operate
ADHN series
Light weight product,20%lighter than standard products.
ADHG series
High torque.Compare with standard products,LHG series torque capacity is
30%higher And the service life is increased by 43%,with high load capacity and
higher liability
Main Used Are Of ADH Series Harmonic Drive
Industrial robot
Service Robots
Humanoid robot
Metal Machine Tools
Medical Devices
Analysis,Test Equipment
Energy Related equipment
Paper making Equipment
Printed circuit manufacturing equipment
Wood light metal,plastic machine tools
Semiconductor manufacturing equipment
FPD manufacturing equipment
Space equipment
