High Quality OEM Grooved 45° Elbow Manufacturer

Code：XGQT07
Size: 1”X 12”(DN25-DN300)
Material: Ductile iron ASTM A536, 65-45-12
Dimension: ISO6182、AWWA C606、GB 5135.11
Connection：ASME B36.10、ASTM A53-A53M、ISO 4200
Thread: If have ISO 7-1,BS 21,BSPT, NPT,ASME B1.20.1
Pressure Rating: 175PSI-500PSI
Surface Treatment: Red Painting, Epoxy Coating ,Hot-Dip Galvanized, Electroplated
Bolt & nut: ASTM A449/ CLASS 8.8/ ISO 898
Gasket: EPDM, Nitrile, Silicone rubber, etc.
Certificate: UL Listed / FM Approved
Application: Fire Protection, Waterworks, HVAC, Plumbing, GAS, Irrigation, or
other piping systems.



Products Details

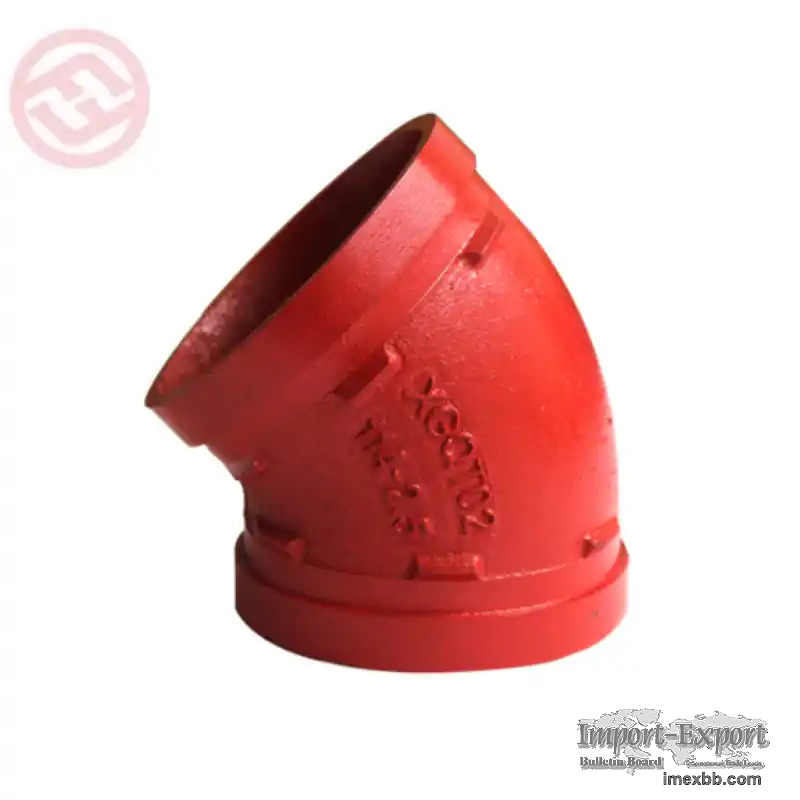

Grooved 45° Elbows are a special type of pipe fitting used in grooved piping
systems. Grooved duct systems are known for their ease of installation and
versatility. Groove design allows for quick, direct connections without soldering.
Here is some information about fluted 45° elbows:

Features of grooved 45° elbow:
1. Materials: Grooved 45° elbows are typically made of ductile iron, stainless
steel, or other materials suitable for the intended application. Specific
materials may vary based on factors such as fluid type, environmental conditions
and industry standards.
2. Groove design: The groove design can be easily assembled using couplings,
washers and bolts. Grooves in pipes and fittings provide a secure and leak-proof
connection.
3. Angle: The 45° angle of the elbow indicates the degree of change in the
direction of fluid flow. It is typically used when a gradual change of direction
is required.
4. Materials and standards: The materials and standards for grooved 45° elbows
depend on the manufacturer and the specific requirements of the application.

Common materials include: Ductile Iron: Commonly used in water and wastewater
applications. Stainless Steel: Suitable for corrosive environments or applications
requiring higher corrosion resistance.

As for standards, products should meet industry standards, such as those set by
organizations such as the American Water Works Association (AWWA) or the National
Fire Protection Association (NFPA). Additionally, manufacturers may have their own
product specifications.

Applications: Like other grooved pipe fittings, grooved 45° elbows can be used in
a variety of industries, including:
1. Fire Protection Systems: Grooved duct systems are commonly used in fire
protection applications due to their ease of installation and reliability.
2. HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems,
grooved fittings are used to achieve efficient, quick connections.
3. Water and wastewater: Ductile iron grooved pipe fittings are commonly used in
water and wastewater treatment plants.
4. Industrial piping: Grooved pipe fittings are used in industrial piping systems
to transport various fluids.
Before selecting and installing a grooved 45° elbow, always consult the
manufacturer’s specifications and guidelines to ensure proper compatibility with
the intended application and compliance with industry standards and local codes.

Quality Control：
Advanced equipment guarantee the production of high quality products.

Advantages of DISA moulding line:
1. High quality precise casting less scrap and lower finishing costs.
2.High Production Efficiency
(1). Fast production: 350 moulds per hour, pattern changing time cut down to 2-3
minutes
(2). higher profitability over a longer service life.
3. Safety and Environmental Friendly safe, easy and clean operation (CE and ISO
14001 compliant)

High-precision, hydraulicly driven mould transport, no shifting, distortion, or
displacement of moulds.
The advantage of the sand supply system: The sand supply system is from the best
class sand processing equipment manufacturers of China, with straight structure,
easier maintenance, environmently friendly, high degree of automation, high safety
factor, good parameters of sand stability.

Fluid Tech is honored as the National enterprise technical center and is capable
and qualified to conduct full series of tests and inspections including chemical
checking, etc. Inspection facilities include: spectrometer, carbon sulfur
analyzer, metallurgical microscope, tensile strength testing equipment, pressure
testing equipment, adhesive force testing equipment, CMM, hardness tester, etc.
From incoming inspection to finished product, quality is checked and monitored in
the whole process. Each step of the manufacturing process is carefully documented,
regularly reviewed for revision control and updating standard. Quality procedures
are constantly monitored and updated to assure that only the highest and most
consistent quality products are supplied to our valued customers.

Application and Case
Products are used in fire protection system, water system, HVAC system, plumbing,
gas system, irrigation system, etc. These products are used in many projects ,
such as China Taiwanese Building 101, Xiamen Building, Wuhan Expo Building and
other famous landmark projects.

Minimum Order: 1 tons
