High-Quality Drum Gear Couplings Drum Gear Coupling

Applications for HUADING high-quality gear couplings are numerous. Continuous
and Flanged Sleeve Gear Couplings are commonly used to solve problems with
extended shaft ends, mill motors, and limited end float.

Drum Gear Couplings Description
Gear couplings are used to provide a mechanical connection between the rotating
shafts of mechanical equipment, solving inherent misalignment problems while
transmitting power and torque between the connected shafts.

To increase coupling life, the shafts should be aligned to minimize deflection
of the bending elements. Mounting requires shaft alignment in axial, parallel,
and angular directions, each of which must not exceed the recommended mounting
limits.

Advantage:
1. Low life-cycle costs and long service life;
2. Increase productivity；
3. Professional and innovative solutions；
4. Reduce carbon dioxide emissions;

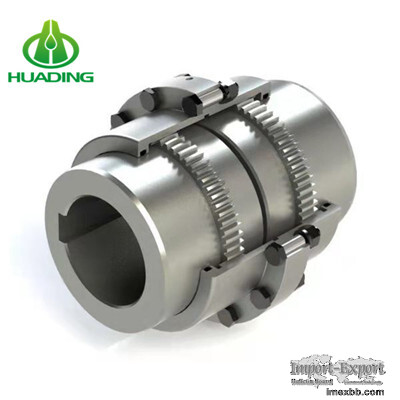

Drum Gear Coupling
· Model: GⅡCLZ Type
· Norminal Torque: 0.4kN. M - 4500kN. M
· Allowed Rotation Sppeed: 4000rpm - 460rpm
· Connection: Keyway & Shaft hole
· Shaft Hole Diameter: 16mm - 1040mm
· Shaft Hole Length (Y): 42mm - 1000mm
· Applications: Metallurgy, mining, lifting and transportation industries,
petroleum, chemical, general machinery and other heavy machinery shaft drive.

Drum type Gear Coupling Features:
1. High carrying capacity
The bearing capacity of the drum gear coupling is 15 to 20% higher than that of
the straight-type coupling in the same outer diameter and the maximum outer
diameter of the coupling.
2. Large angular displacement compensation
When the radial displacement is equal to zero, the allowable angular
displacement of the straight-tooth coupling is 1°, but the allowable angular
displacement of the drum gear-type coupling is 1°30", 50% increased. With the
same modulus, tooth number, and tooth width, the allowable angular displacement
of the drum teeth is larger than that of the straight teeth.
3. Drum gear coupling has improved the internal and external contact
conditions, which avoids the drawbacks of angular displacement of the
mandibular tooth edge extrusion and stress concentration, in the meanwhile
improving the tooth surface friction, wear conditions, reducing noise, and long
maintenance cycle.
4. The tooth end of the outer teeth set is horn shape so that the internal and
external tooth assembly and disassembly are very convenient.
5. Transmission efficiency is up to 99.7%.

Our Services
1. Design Services
Our design team has experience in gear coupling relating to product design and
development. If you have any needs for your new product or wish to make further
improvements, we are here to offer our support.
2. Product Services
Raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat
treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3. Samples Procedure
We could develop the sample according to your requirement and amend the sample
constantly to meet your need.
4. Research & Development
We usually research the new needs of the market and develop new models when
there are new cars in the market.
5. Quality Control
Every step should be a special test by Professional Staff according to the
standard of ISO9001 and TS16949.
