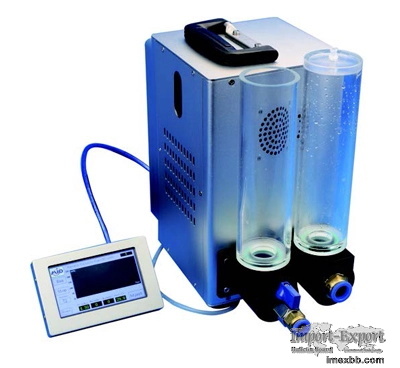

High-precision Pulsatile Pump

This product is mainly composed of pulse pump system, control system and output
display system. It is used to provide blood flow power source for human blood
flow simulation device, and can accurately adjust the required simulation
parameters.

Features of High-precision Pulsatile Pump
Composition: Analog pump, touch screen display, pressure sensor interface.

Product parameters

• Fluid media: water, preclinic lubricating fluid, blood-like
• Pulsation frequency: 5-160beat/min
• Maximum output per heartbeat: 80ml
• Cardiac output: 5.5L/min@70Beat/min
• Maximum output pressure: 250mm Hg
• Temperature control accuracy: 0-100℃±0.2℃
• Power: 90-240VAC/50-60Hz, 400W
• Pro. Dimensions: 210*150*280mm
• Weight: 6.6kg
• Reference standard: ISO 5840-3

Other characteristics: Hemodynamic simulation provides simulated fluid for the
cardiovascular model and can adjust the temperature, flow rate, and pressure of
the simulated fluid. The parameter adjustment accuracy is high, and the touch
screen outputs a parameter curve.

As one of the medical models suppliers, we provide pulsatile pump system,
pulsatile flow pump, pulsatile blood pump, etc. For pulsatile pump definition
or more information, please feel free to contact us!

Minimum Order: 100 sets
