High Precision Micro PCD Drill

Description: The Micro Drilling products cover semiconductor materials,
metals, ceramics and polymers. Each product has laser and beam delivery
design optimized for a specific application, and can be configured for
manual or automatic operation, allowing customers to buy exactly the
application solution they need. PCD Micro Drill is used in the
Semiconductor industry, National defense field, Aerospace,
Chip&Communication electronics,
Details
Specification：
PCD MICRO DRILL SLOT STRUCTURE AND DRILL TIP
1. The grinding groove is smooth and the chip removal is excellent;
2. The edge surface is polished and the main edge is sharp;
3. The tip rotates stably and the hole position is accurate
The Micro Drilling products cover semiconductor materials, metals, ceramics
and polymers. Each product has laser and beam delivery design optimized for
a specific application, and can be configured for manual or automatic
operation, allowing customers to buy exactly the application solution they
need.
PCD MICRO DRILLS FEATURES
1. PCD micro drill has characteristics of high hardness, wear resistance,
and relatively long service life compared with traditional alloy microdrill;
2. PCD micro drill is widely used in addition to processing metal materials,
and can also be used for inorganic non-metallic material processing, with
high processing precision;
3. PCD micro drill, compared with traditional alloy micro drill, can process
hole walls with better quality.
▶Improved Tool Life
▶Improved Productivity
▶Improved Hole Quality
▶Reducing Your Machining Time
PCD MICRO DRILLS STANDARD
Highest technology laser manufactured micro PCD drills.
Micro PCD drills are used in the semiconductor industry for monocrystalline
applications such as cleaning and inspection jigs.
They are also used for the graphite electrode manufacturing for EDM and
drilling very hard to machine materials in the die & mold industry.
Designed with superb surface quality and edge sharpness.
Multiple scale tool life as compared to standard carbide coated micro
drills.
Other dimensions are available per request.

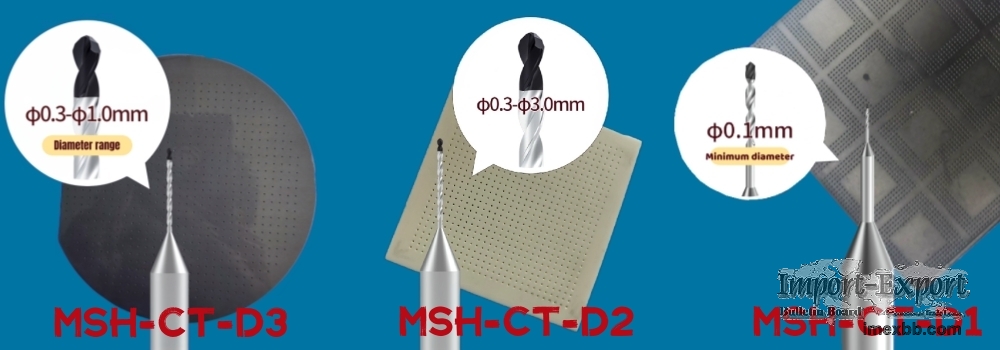

Models:
Applications of High Precision Micro PCD Drill:
Micro Drilling Systems are used in the microelectronics, microfluidics,
semiconductor, LED, medical devices, and PV industries.
The systems combine precision part-moving stages, high-resolution alignment
systems and application-optimized lasers with IPG’s proprietary software to
provide high-throughput and high drilling accuracies.


Pack: Cartons and bubble wrap
Payment: TT; Paypal;
Delivery Time: Seven to ten days
Sample: No free samples are provided
Certification: ISO9001:2008
FOB Port: Shanghai Qingdao Guangzhou

Minimum Order: 1 pieces
