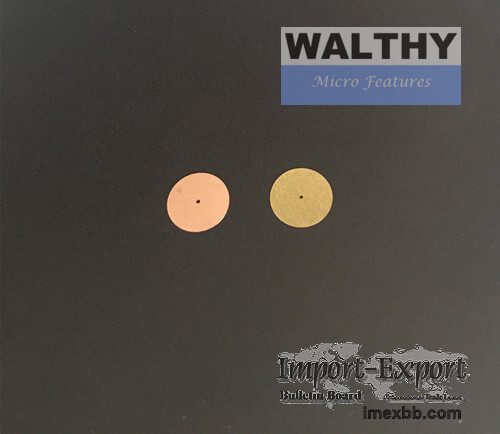

High Power Pinhole Aperture

High Power Pinhole Apertures are used in high energy and power applications. The
pinhole apertures are used in the optical transfer assembly of a system using a
powerful laser as a source.A typical example is the aperture within a spatial
filter assembly.

Specifications:

Standard Material: Copper

Diameter: 9.5mm or customized

Thickness: 0.01, 0.02, 0.03, 0.05, 0.1mm or customized

Pinhole size: 5-1000um, high power slits are also available.

Centering: +/-0.01mm

Pinhole/Aperture Tolerance: 5% or 10%, depends on the specific dimension

Finish: Can be gold plated, both sides

Custom Pattern and Shape: All available

High precision slits and pinhole apertures, chrome-coated glass slits are all
available, including mounted slits and pinholes.

We accept customization. If you have other patterns or requirements, pls contact
us for more information.

Minimum Order: 1 pieces

High Power Pinhole Aperture
Enlarge Click to Enlarge
