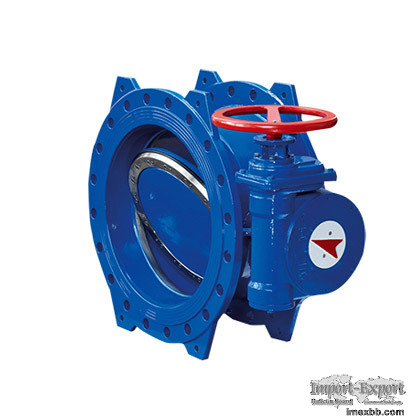

High Performance 2-OFFSET BUTTERFLY VALVE

Name: Double eccentric butterfly valve
Another name: High performance butterfly valve
Applicable: Water plant, power plant, steel plant smelting, chemical industry
Features: Longer life and good stability
Features:
Leflow is providing high quality Double-offset butterfly valve. We produce
double eccentric butterfly valves with diameters ranging from DN100 to DN1200.
Double offset uses two separate offsets to achieve a bubble-tight. One of the
offsets is the location of the valve shaft relative to the centerline of the
bore. Another offset is between the centerline of the disc/seat sealing surface
and the shaft.
This structure make the valve has following benefits:
1. Double Eccentric structure ensures low operating torques with zero leakage
performance;
2. Inner and outer surfaces of the valve are coated with fusion bonded
epoxy,and Its thickness can be adjustable;
3. Low moments are obtained by decreasing the friction through self-lubricating
bushings;
4. Can bear high stretching stresses on the pipeline through the ductile iron
body and disc;
5. High impact resistance.
6. Pressure loss is at minimum level by double shaft design.
7. Sealing gaskets fasten by bolt can be replaced at field condition;
8. With the o-rings on the bearing bushings, disc pin holes are protected
against corrosion (Dry shaft);
9. Retaining ring is assembled to the disc with imbus bolts, the disc is
protected against corrosion by placing o-rings under the bolts.
10. Stainless steel welding seat can reach better sealing
