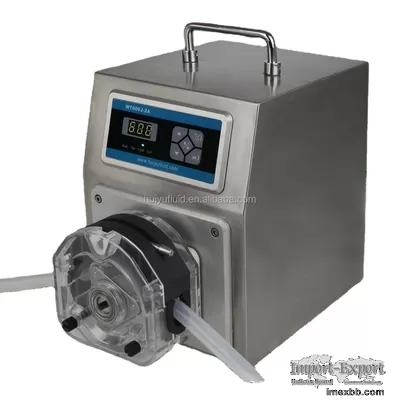

High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J

Description
High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A
Product Description
Standard peristaltic pump WT600J-2A

Flow range≤6000ml/min


High IP rating ,can stack multi pump heads


High torque output,low vibration,efficient


DC brushless motor,maintenance free

High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 0
Specification
Motor speed
60-600rpm
Motor speed precision
≤±1％
motor speed resolution
1.0rpm
Output torque
1.5Nm
Display
3 digit LED for speed;4 LED indicators for working status
Memory function
save parameter automatically
remote control port
(0.5-5v/1-10v voltage signal,4-20mA,0-10kHz singal are optional)
to control the motor speed(60-600rpm)
Communication port
RS485
Power supply
AC220V±20％,50/60Hz
Max power consumption
≤200W
Working environment
0-40℃,relative humidity＜80％
Measurement
250x190x255(LXW , XH)mm
Weight
8KG
IP rating
IP55
Suitable peristaltic pump head

High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 1
YZ15-13A,YZ25-13A
(1,2,3,4)YZ15-13A, flow range:(4.2-2200ml/min)
(1,2,3,4)YZ25-13A,flow range(100-1600ml/min)


High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 2
BZ15 series,BZ25
(1,2,3,4)BZ15 Seris ,flow rate range(4.2-2200ml/min)
(1,2,3,4)BZ25, flow rate range(174-2200ml/min)

High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 3
KZ25
(1,2)*KZ25 flow range 200-6000ml/min(single channel)
Technical table

High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 4
Packing & Delivery
High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 5
Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx
etc.



1 SET PERISTALTIC PUMP INCLUDING:

1.Drive
2.Pump Head
3. 2 meters silicon tube
4. power cord
5. manual pamphlet
Warranty:1 year
Certifications
High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 6
High IP Rating Huiyu Peristaltic Pump Large Torque Peristaltic Pump WT600J-
2A 7
Company Profile
Hyuweiy(Beijing) Fluid Equipment Co., Ltd is a branch company of Beijing
Huiyuweiye international Environmental Engineering Co.,Ltd. It’s a high
tech company which produce fluid equipments, combined equipment research and
development, production, sales and service in one, with strong professional
technical team, superb production process, excellent product quality, good
fast service,to provide users with a full range of fluid solutions. We
cooperate with many universities to establish a long-term development
relationship. Our products are widely used in research laboratories and
industrial production and other fields. We have professional mechanical
engineer, electrical engineer, OEM engineers, and professional sales and
after sale service team, formed a professional, young, the pursuit of the
perfect team.



Beijing Huiyuweiye international Environmental Engineering Co., Ltd. Is a
group company which Has four subsidiaries. Include Langfang Chaohang
Environmental Engineering Co., Ltd., Hebei Fulaier Environmental Protection
Engineering and Energy saving Co., Ltd.; Hebei Huiyu Environmental
Protection Equipment Co., Ltd. and Hyuweiy(Beijing) Fluid Equipment Co.,
Ltd. The group owns fixed assets 380 million, annual output value of 800
million.



Over the years, the company leadership has always been adhering to the
"science and technology enterprise" concept, explore diversified and
sustainable development road.



Our company bases on University of Science and Technology Beijing, Harbin
Institute of Technology, Hebei University of Technology, Hebei United
Universityand other universities and colleges , relying on its strong
advantage of technical talents, introduced advanced science and technology
from foreign countries and started to work in precision liquid instrument
industry. our production line contains peristaltic pump, laboratory syringe
pump, industrial syringe pump, plunger pump and OEM pump according to
customer’s specific requirement. Until now we have more than 40 series of
360 models production. Products have been tested by a professional
institution, they reached the international advanced level.



Advanced management mode is the rudder of Huiyu’s development. exquisite
techniqueis is the sail of Huiyu’s development, Meeting the flourishing of
science and technology development, Huiyu must be able to sail. Dare to be
the first.
FAQ
1. Are you a factory or trade company?
we are a special and reliable manufacturer of peristaltic pump. Over 10
years experiences in fluid transfer.


2.Any certificates for your peristaltic pump?


Our peristaltic pump with CE, RoHS certificates


3. How long will you delivery after order confirmed?


3 work days if your oder less 10 pcs.


4. The warranty?


1 years
