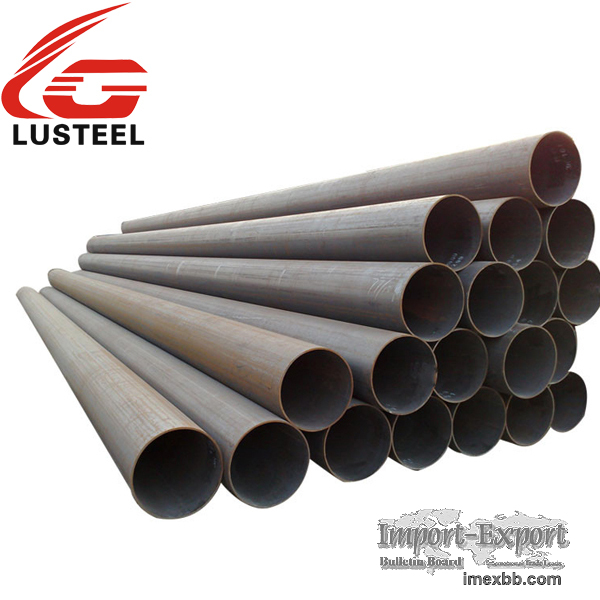

High Frequency Welded Pipe

High Frequency Welded Pipe standard: ASTM, DIN, ISO, EN, JIS, GB, etc.
Material: Q195、Q215、Q235、Q345、Q355、S195T、GR.B、 , X42、X52、X60、CC60、
CC70、ST35、ST52、 , S235JR、S355JR、SGP、STP G370、STP G410、GR12、GR2 etc.
Outer diameter: 6mm-4064mm or as required
Wall thickness: 3mm-50mm or as required
Length: 3m-20m or as required
Surface: Lightly oiled, hot dip galvanized, electro-galvanized, black, bare,
varnish coating/anti-rust oil, protective coating, etc.
Package: Standard export package, or as required.
Price term: EXW, FOB, CIF, CFR, CNF, etc.
Payment: T/T, L/C, Western Union, etc.
Export to America, Australia, Brazil, Canada, Peru, Iran, Italy, India, United
Kingdom, Arab, etc.
More details link: https://www.lu-steelgroup.com
High frequency welded pipe is based on solid resistance heat. Resistance
thermal welding uses high-frequency current in the workpiece to heat the
surface of the workpiece welding area to a molten or close to plastic state,
and then applies (or does not apply) an upsetting force to the metal composite
tube of this type of steel. The production speed of HFW steel pipe is fast, and
the welding speed can reach 30m/min. It is made by melting the base material of
the steel strip body, and its mechanical strength is better than that of
general welded pipes. Smooth appearance, high precision, low cost and small
weld reinforcement, which is beneficial to the coating of 3PE anticorrosive
coating. It is mainly used for manufacturing pipe welding longitudinal seams or
spiral seams.

Minimum Order: 1 tons
