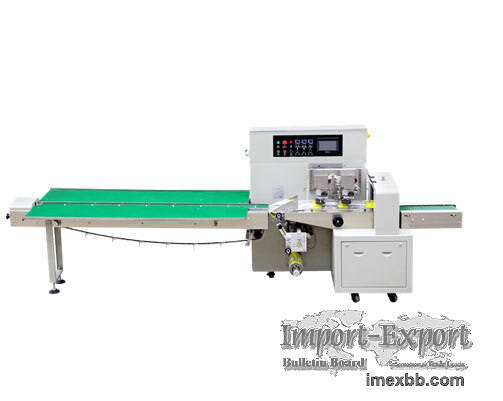

HFFS HARDWARE PILLOW PACKING MACHINE 350X

GN-ZB-350XSF pillow packaging machine for the hardware industry is a kind of
automatic induction length identification hardware packing machine
independently developed by guonuo company, which is specially designed for all
kinds of aluminum materials, guide rails, hardware accessories, hoses, bathroom
shower pipes, PVC pipes, and other products with different lengths.

HFFS hardware packaging machine 350X TECHNICAL PARAMETERS

Machine Model GN-ZB-350XSF
Film Width Max 340mm
Bag Length Suitable different lengths according to the product
Bag Width 50-150mm
Product Height Max 55mm
Film Roll Diameter Max 320mm
Packing Speed 10-25m/min
Power Supply 220Vac  56/60Hz  2.4KW
Machine Dimension L4000 × W760 × H1370mm
Gross Weight 550Kg
Remarks: The packaging film can be connected under the normal working state of
the machine, saving time and high efficiency

Hffs Hardware Pillow Packing Machine 350X Main Parts Configuration
Main Parts Configuration  (In case of replacement, the same grade shall
prevail)
No. Components Brand
1 PLC PANASONIC JAPAN
2 Inverter PANASONIC JAPAN / SHIHLIN TAIWAN
3 Touch Screen XINJIE/MCGS CHINA
4 Temperature Controller ALSET CHINA
5 Photocell ALSET CHINA
6 Encoder RONGDE CHINA
7 Two Position Switch GLELE CHINA
8 Proximity Switch ENVK TAIWAN
9 Power MINGWEI TAIWAN
10 Solid State Relay SCHNEIDER GERMANY
11 Intermediate Relay OMRON JAPAN


As a leading packing machine manufacturer in China, We provide hardware
counting packing machine, sleeve wrapping machine and etc. For more
information, please feel free to contact us!

Minimum Order: 30 sets
